Каталоги Yamawa твердосплавные метчики для закаленной стали

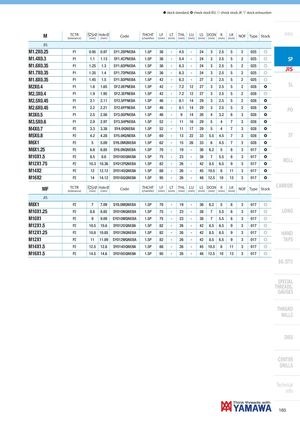

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | L ( m | K m ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||||
| M1.2X0.25 | P1 | 0.95 | 0.97 | SY1.2BPNEBA | 1.5P | 36 | - | 4.5 | - | 24 | 3 | 2.5 | 5 | 2 | 025 | f | ||
| M1.4X0.3 | P1 | 1.1 | 1.13 | SY1.4CPNEBA | 1.5P | 36 | - | 5.4 | - | 24 | 3 | 2.5 | 5 | 2 | 025 | f | SP | |
| M1.6X0.35 | P1 | 1.25 | 1.3 | SY1.6DPNEBA | 1.5P | 36 | - | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 025 | f | ||
| M1.7X0.35 | P1 | 1.35 | 1.4 | SY1.7DPNEBA | 1.5P | 36 | - | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 025 | f | JIS | |
| M1.8X0.35 | P1 | 1.45 | 1.5 | SY1.8DPNEBA | 1.5P | 42 | - | 6.3 | - | 27 | 3 | 2.5 | 5 | 2 | 025 | f | ||
| M2X0.4 | P1 | 1.6 | 1.65 | SY2.0EPNEBA | 1.5P | 42 | - | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 028 | ) | SL | |
| M2.3X0.4 | P1 | 1.9 | 1.95 | SY2.3EPNEBA | 1.5P | 42 | - | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 028 | f | ||
| M2.5X0.45 | P1 | 2.1 | 2.11 | SY2.5FPNEBA | 1.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 028 | ) | ||
| M2.6X0.45 | P1 | 2.2 | 2.21 | SY2.6FPNEBA | 1.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 028 | ) | PO | |
| M3X0.5 | P1 | 2.5 | 2.56 | SY3.0GPNEBA | 1.5P | 46 | - | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 028 | ) | ||
| M3.5X0.6 | P1 | 2.9 | 2.97 | SY3.5HPNEBA | 1.5P | 52 | - | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 028 | ) | ||
| M4X0.7 | P2 | 3.3 | 3.38 | SY4.0IQNEBA | 1.5P | 52 | - | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 028 | ) | ||
| M5X0.8 | P2 | 4.2 | 4.28 | SY5.0KQNEBA | 1.5P | 60 | - | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 028 | ) | ST | |
| M6X1 | P2 | 5 | 5.09 | SY6.0MQNEBA | 1.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 028 | ) | ||
| M8X1.25 | P2 | 6.8 | 6.85 | SY8.0NQNEBA | 1.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 017 | ) | ||
| M10X1.5 | P2 | 8.5 | 8.6 | SY010OQNEBA | 1.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 017 | ) | ||
| M12X1.75 | P2 | 10.3 | 10.36 | SY012PQNEBA | 1.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 017 | ) | ROLL | |
| M14X2 | P2 | 12 | 12.12 | SY014QQNEBA | 1.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 1 | 1 | 3 | 017 | ) | |
| M16X2 | P2 | 14 | 14.12 | SY016QQNEBA | 1.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 1 | 3 | 3 | 017 | ) | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | L ( m | K m ) | NOF | Type | Stock | CARBIDE |
| JIS | ||||||||||||||||||
| M8X1 | P2 | 7 | 7.09 | SY8.0MQNEBA | 1.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 017 | f | ||
| M10X1.25 | P2 | 8.8 | 8.85 | SY010NQNEBA | 1.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 017 | f | LONG | |
| M10X1 | P2 | 9 | 9.09 | SY010MQNEBA | 1.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 017 | f | ||
| M12X1.5 | P2 | 10.5 | 10.6 | SY012OQNEBA | 1.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 017 | f | ||
| M12X1.25 | P2 | 10.8 | 10.85 | SY012NQNEBA | 1.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 017 | f | HAND | |
| M12X1 | P2 | 11 | 11.09 | SY012MQNEBA | 1.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 017 | f | TAPS | |
| M14X1.5 | P2 | 12.5 | 12.6 | SY014OQNEBA | 1.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 1 | 1 | 3 | 017 | f | |
| M16X1.5 | P2 | 14.5 | 14.6 | SY016OQNEBA | 1.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 1 | 3 | 3 | 017 | f | |
| EG (STI) SPECIAL THREADS, GAUGES THREAD MILLS DIES CENTER DRILLS |
