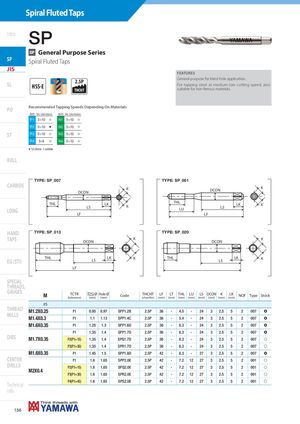

GP General Purpose Series
SP Spiral Fluted Taps
JIS
2.5P
SL HSS-E
THCHT
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min) ISO Vc (m/min)
| P1 | 5÷10 | I | N1 | 5÷10 | I | |
| P2 | 5÷10 | H | N2 | 5÷10 | I | |
| ST | P3 | 5÷10 | I | N3 | 5÷10 | I |
| P4 | 5÷8 | I | N4 | 5÷10 | I |
H 1st choice I suitable ROLL
FEATURES General purpose for blind hole application. For tapping steel at medium-low cutting speed, also suitable for non-ferrous materials.
JIS-SP
TYPE: SP_007 TYPE: SP_001
CARBIDE
K K DCON DCON THL
THL LK LK K
LS K LS
LONG LU LF LF
HAND TYPE: SP_013 TYPE: SP_020
TAPS K K
DCON DCON
EG (STI)
SPECIAL
THREADS,
GAUGES
THL LK K THL LK K
LS LS LF
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| THREAD | JIS | ||||||||||||||||
| M1.2X0.25 | P1 | 0.95 | 0.97 | SPP1.2B | 2.5P | 36 | - | 4.5 | - | 24 | 3 | 2.5 | 5 | 2 | 007 | ) | |
| MILLS | M1.4X0.3 | P1 | 1.1 | 1.13 | SPP1.4C | 2.5P | 36 | - | 5.4 | - | 24 | 3 | 2.5 | 5 | 2 | 007 | ) |
| M1.6X0.35 | P1 | 1.25 | 1.3 | SPP1.6D | 2.5P | 36 | - | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 007 | ) | |
| P1 | 1.35 | 1.4 | SPP1.7D | 2.5P | 36 | - | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 007 | ) | ||
| DIES | M1.7X0.35 | P2(P1+15) | 1.35 | 1.4 | SPQ1.7D | 2.5P | 36 | - | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 007 | f |
| P3(P1+30) | 1.35 | 1.4 | SPR1.7D | 2.5P | 36 | - | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 007 | f | ||
| M1.8X0.35 | P1 | 1.45 | 1.5 | SPP1.8D | 2.5P | 42 | - | 6.3 | - | 27 | 3 | 2.5 | 5 | 2 | 007 | ) | |
| CENTER | P1 | 1.6 | 1.65 | SPP2.0E | 2.5P | 42 | - | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | f | |
| DRILLS | M2X04 | P2(P1+15) | 1.6 | 1.65 | SPQ2.0E | 2.5P | 42 | - | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | f |
| . | P3(P1+30) | 1.6 | 1.65 | SPR2.0E | 2.5P | 42 | - | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | f | |
| P4(P1+45) | 1.6 | 1.65 | SPS2.0E | 2.5P | 42 | - | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | f |
