Каталоги Yamawa твердосплавные метчики для закаленной стали

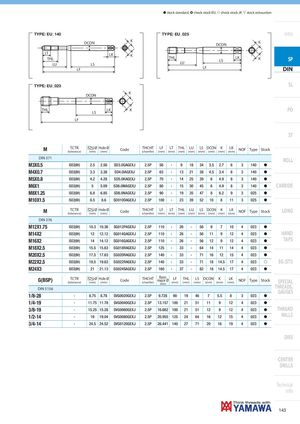

DCON LT THL LU LS LF
TYPE: EU_023 DCON THL LS LF
LK
LK
K
K
K
K
THL
LU
K DCON
LK K SP
LS LF DIN
SL
PO
ST
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm | ) | THL ( mm ) | LU ( mm ) | ( | LS mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 371 | ROLL | ||||||||||||||||||
| M3X0.5 | ISO2(6H) | 2.5 | 2.56 | SD3.0GAGEXJ | 2.5P | 56 | - | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 140 | h | |||
| M4X0.7 | ISO2(6H) | 3.3 | 3.38 | SD4.0IAGEXJ | 2.5P | 63 | - | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 140 | h | |||
| M5X0.8 | ISO2(6H) | 4.2 | 4.28 | SD5.0KAGEXJ | 2.5P | 70 | - | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 140 | h | |||
| M6X1 | ISO2(6H) | 5 | 5.09 | SD6.0MAGEXJ | 2.5P | 80 | - | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 140 | h | CARBIDE | ||
| M8X1.25 | ISO2(6H) | 6.8 | 6.85 | SD8.0NAGEXJ | 2.5P | 90 | - | 19 | 35 | 47 | 8 | 6.2 | 9 | 3 | 025 | h | |||
| M10X1.5 | ISO2(6H) | 8.5 | 8.6 | SD010OAGEXJ | 2.5P | 100 | - | 23 | 39 | 52 | 10 | 8 | 11 | 3 | 025 | h | |||
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm | ) | THL ( mm ) | LU ( mm ) | ( | LS mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | LONG |
| DIN 376 | |||||||||||||||||||
| M12X1.75 | ISO2(6H) | 10.3 | 10.36 | SG012PAGEXJ | 2.5P | 110 | - | 26 | - | 56 | 9 | 7 | 10 | 4 | 023 | h | |||
| M14X2 | ISO2(6H) | 12 | 12.12 | SG014QAGEXJ | 2.5P | 110 | - | 26 | - | 56 | 11 | 9 | 12 | 4 | 023 | h | HAND | ||
| M16X2 | ISO2(6H) | 14 | 14.12 | SG016QAGEXJ | 2.5P | 110 | - | 26 | - | 56 | 12 | 9 | 12 | 4 | 023 | h | TAPS | ||
| M18X2.5 | ISO2(6H) | 15.5 | 15.63 | SG018RAGEXJ | 2.5P | 125 | - | 33 | - | 64 | 14 | 11 | 14 | 4 | 023 | h | |||
| M20X2.5 | ISO2(6H) | 17.5 | 17.63 | SG020RAGEXJ | 2.5P | 140 | - | 33 | - | 71 | 16 | 12 | 15 | 4 | 023 | h | |||
| M22X2.5 | ISO2(6H) | 19.5 | 19.63 | SG022RAGEXJ | 2.5P | 140 | - | 33 | - | 71 | 18 | 14.5 | 17 | 4 | 023 | f | EG (STI) | ||
| M24X3 | ISO2(6H) | 21 | 21.13 | SG024SAGEXJ | 2.5P | 160 | - | 37 | - | 82 | 18 | 14.5 | 17 | 4 | 023 | h | |||
| G(BSP) | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø (mm) | ( | L m | F m ) TH ( m | L m ) ( | LS mm | ) D | CON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | SPECIAL |
| DIN 5156 | THREADS, GAUGES | ||||||||||||||||||
| 1/8-28 | - | 8.75 | 8.78 | SVG0020GEXJ | 2.5P | 9.728 | 9 | 0 1 | 9 | 46 | 7 | 5.5 | 8 | 3 | 023 | h | |||
| 1/4-19 | - | 11.75 | 11.78 | SVG0040GEXJ | 2.5P | 13.157 | 10 | 0 2 | 1 | 51 | 11 | 9 | 12 | 4 | 023 | h | |||
| 3/8-19 | - | 15.25 | 15.28 | SVG0060GEXJ | 2.5P | 16.662 | 10 | 0 2 | 1 | 51 | 12 | 9 | 12 | 4 | 023 | h | THREAD | ||
| 1/2-14 | - | 19 | 19.04 | SVG0080GEXJ | 2.5P | 20.955 | 12 | 5 2 | 4 | 64 | 16 | 12 | 15 | 4 | 023 | h | MILLS | ||
| 3/4-14 | - | 24.5 | 24.52 | SVG0120GEXJ | 2.5P | 26.441 | 14 | 0 2 | 7 | 71 | 20 | 16 | 19 | 4 | 023 | h |
