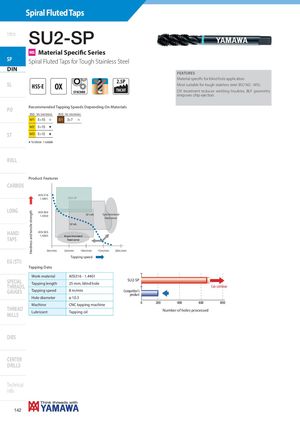

SU2-SP
MS Material Specifi c Series
SP Spiral Fluted Taps for Tough Stainless Steel
DIN
2.5P
SL HSS-E OX
THCHT SYNCHRO
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min) ISO Vc (m/min)
| M1 5÷15 | I | S1 | 3÷7 | I | |
| M2 5÷15 | H | ||||
| ST | M3 5÷12 | H |
H 1st choice I suitable
FEATURES Material specifi c for blind hole application. Most suitable for tough stainless steel (ISO M2 - M3). OX treatment reduces welding troubles, BLF geometry imrpoves chip ejection.
ROLL
DIN-SU2-SP
Product Features
CARBIDE
AISI 316 1.4401 SU2-SP
LONG
AISI 304 SP+VA Synchronized 1.4350 feed zone SP-VA HAND AISI 303
| TAPS | 1.4305 | AsynchronizedAsynchronized |
| feed zonefeed zone |
0m/min 5m/min 10m/min 15m/min 20m/min
Tapping speed EG (STI) Tapping Data Work-material AISI316 - 1.4401
SPECIAL SU2-SP
| THREADS, | Tapping length | 25 mm, blind hole | |||
| Can continue | |||||
| GAUGES | Tapping speed | 8 m/min | Competitor's | ||
| product | |||||
| Hole diameter | ø 10.3 |
| 0 | 200 | 400 | 600 | 800 | |||
| Machine | CNC tapping machine | ||||||
| THREAD |
Lubricant Tapping oil Number of holes processed
MILLS
