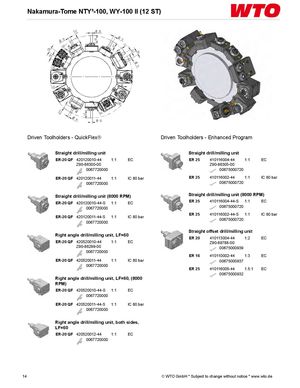

Nakamura-Tome NTY³-100, WY-100 II (12 ST) Driven Toolholders - QuickFlex® Driven Toolholders - Enhanced Program Straight drill/milling unit Straight drill/milling unit ER-20 QF 420120010-44 1:1 EC ER 25 410116004-44 1:1 EC Z90-86300-00 Z90-86305-00 0067720000 00675000720 ER-20 QF 420120011-44 1:1 IC 80 bar ER 25 410116002-44 1:1 IC 80 bar 0067720000 00675000720 Straight drill/milling unit (8000 RPM) Straight drill/milling unit (8000 RPM) ER-20 QF 420120010-44-S 1:1 EC ER 25 410116004-44-S 1:1 EC 0067720000 00675000720 ER 25 410116002-44-S 1:1 IC 80 bar ER-20 QF 420120011-44-S 1:1 IC 80 bar 00675000720 0067720000 Straight offset drill/milling unit Right angle drill/milling unit, LF=60 ER 20 410113004-44 1:2 EC ER-20 QF 420520010-44 1:1 EC Z90-89788-00 Z90-86299-00 00675000939 0067720000 ER 16 410110002-44 1:3 EC ER-20 QF 420520011-44 1:1 IC 80 bar 00675000937 0067720000 ER 25 410116005-44 1.5:1 EC 00675000932 Right angle drill/milling unit, LF=60, (8000 RPM) ER-20 QF 420520010-44-S 1:1 EC 0067720000 ER-20 QF 420520011-44-S 1:1 IC 80 bar 0067720000 Right angle drill/milling unit, both sides, LF=60 ER-20 QF 420520012-44 1:1 EC 0067720000 14 © WTO GmbH * Subject to change without notice * www.wto.de
