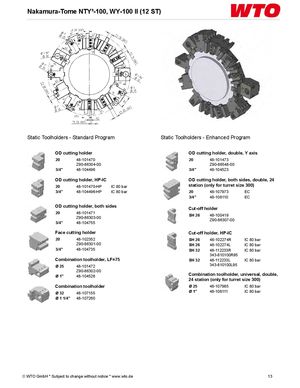

Nakamura-Tome NTY³-100, WY-100 II (12 ST) Static Toolholders - Standard Program Static Toolholders - Enhanced Program OD cutting holder OD cutting holder, double, Y axis 20 48-101470 20 48-101473 Z90-86304-00 Z90-86548-00 3/4" 48-104496 3/4" 48-104523 OD cutting holder, HP-IC OD cutting holder, both sides, double, 24 20 48-101470-HP IC 80 bar station (only for turret size 300) 3/4" 48-104496-HP IC 80 bar 20 48-107973 EC 3/4" 48-108110 EC OD cutting holder, both sides Cut-off holder 20 48-101471Z90-86303-00 SH 26 48-100419Z90-86307-00 3/4" 48-104755 Face cutting holder Cut-off holder, HP-IC 20 48-102352 SH 26 48-102274R IC 80 bar Z90-86301-00 SH 26 48-102274L IC 80 bar 3/4" 48-104735 SH 32 48-112233R IC 80 bar 343-810100R95 Combination toolholder, LF=75 SH 32 48-112233L IC 80 bar Ø 25 48-101472 343-810100L95 Z90-86302-00 Ø 1" 48-104526 Combination toolholder, universal, double, 24 station (only for turret size 300) Combination toolholder Ø 25 48-107985 IC 80 bar Ø 32 48-107155 Ø 1" 48-108111 IC 80 bar Ø 1 1/4" 48-107260 © WTO GmbH * Subject to change without notice * www.wto.de 13
