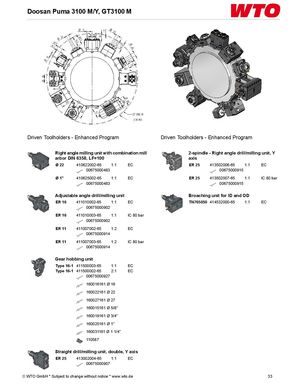

Doosan Puma 3100 M/Y, GT3100 M Driven Toolholders - Enhanced Program Driven Toolholders - Enhanced Program Right angle milling unit with combination mill 2-spindle - Right angle drill/milling unit, Y arbor DIN 6358, LF=100 axis Ø 22 410622002-65 1:1 EC ER 25 413502006-65 1:1 EC 00675000483 00675000915 Ø 1" 410625002-65 1:1 EC ER 25 413502007-65 1:1 IC 80 bar 00675000483 00675000915 Adjustable angle drill/milling unit Broaching unit for ID and OD ER 16 411010002-65 1:1 EC TN765050 414532000-65 1:1 EC 00675000902 ER 16 411010003-65 1:1 IC 80 bar 00675000902 ER 11 411007002-65 1:2 EC 00675000914 ER 11 411007003-65 1:2 IC 80 bar 00675000914 Gear hobbing unit Type 16-1 411500003-65 1:1 EC Type 16-1 411500002-65 2:1 EC 00675000927 160016161 Ø 16 160022161 Ø 22 160027161 Ø 27 160015161 Ø 5/8" 160019161 Ø 3/4" 160025161 Ø 1" 160031161 Ø 1 1/4" 110587 Straight drill/milling unit, double, Y axis ER 25 413002004-65 1:1 EC 00675000907 © WTO GmbH * Subject to change without notice * www.wto.de 33
