Каталог WTO инструмент для обрабатывающих центров - страница 80

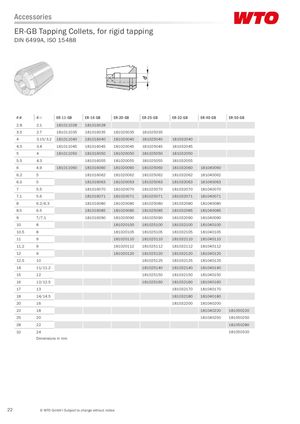

Accessories ER-GB Tapping Collets, for rigid tapping DIN 6499A, ISO 15488 dø d□ ER-11-GB ER-16-GB ER-20-GB ER-25-GB ER-32-GB ER-40-GB ER-50-GB 2.8 2.1 181011028 181016028 3.5 2.7 181011035 181016035 181020035 181025035 4 3.15/3.2 181011040 181016040 181020040 181025040 181032040 4.5 3.4 181011045 181016045 181020045 181025045 181032045 5 4 181011050 181016050 181020050 181025050 181032050 5.5 4.3 181016055 181020055 181025055 181032055 6 4.9 181011060 181016060 181020060 181025060 181032060 181040060 6.2 5 181016062 181020062 181025062 181032062 181040062 6.3 5 181016063 181020063 181025063 181032063 181040063 7 5.5 181016070 181020070 181025070 181032070 181040070 7.1 5.6 181016071 181020071 181025071 181032071 181040071 8 6.2/6.3 181016080 181020080 181025080 181032080 181040080 8.5 6.5 181016085 181020085 181025085 181032085 181040085 9 7/7.1 181016090 181020090 181025090 181032090 181040090 10 8 181020100 181025100 181032100 181040100 10.5 8 181020105 181025105 181032105 181040105 11 9 181020110 181025110 181032110 181040110 11.2 9 181020112 181025112 181032112 181040112 12 9 181020120 181025120 181032120 181040120 12.5 10 181025125 181032125 181040125 14 11/11.2 181025140 181032140 181040140 15 12 181025150 181032150 181040150 16 12/12.5 181025160 181032160 181040160 17 13 181032170 181040170 18 14/14.5 181032180 181040180 20 16 181032200 181040200 22 18 181040220 181050220 25 20 181040250 181050250 28 22 181050280 32 24 181050320 Dimensions in mm 22 © WTO GmbH I Subject to change without notice
