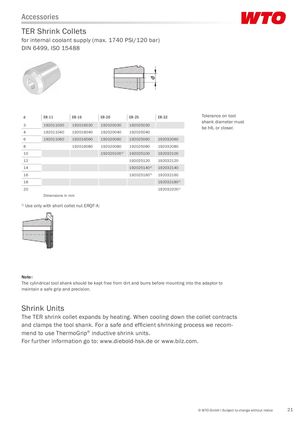

Accessories TER Shrink Collets for internal coolant supply (max. 1740 PSI/120 bar) DIN 6499, ISO 15488 d ER-11 ER-16 ER-20 ER-25 ER-32 Tolerance on tool shank diameter must 3 192011030 192016030 192020030 192025030 be h6, or closer. 4 192011040 192016040 192020040 192025040 6 192011060 192016060 192020060 192025060 192032060 8 192016080 192020080 192025080 192032080 10 1920201001) 192025100 192032100 12 192025120 192032120 14 1920251401) 192032140 16 1920251601) 192032160 18 1920321801) 20 1920322001) Dimensions in mm 1) Use only with short collet nut ERQF-A: Note: The cylindrical tool shank should be kept free from dirt and burrs before mounting into the adaptor to ­maintain a safe grip and precision. Shrink Units The TER shrink collet expands by heating. When cooling down the collet contracts and clamps the tool shank. For a safe and efficient shrinking process we recom- mend to use ThermoGrip® inductive shrink units. For further information go to: www.diebold-hsk.de or www.bilz.com. © WTO GmbH I Subject to change without notice 21
