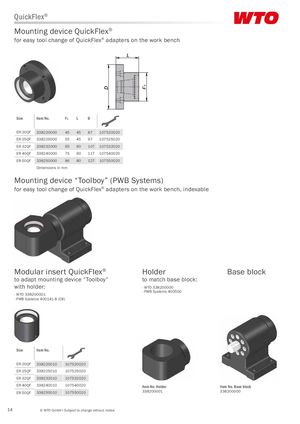

QuickFlex® Mounting device QuickFlex® for easy tool change of QuickFlex® adapters on the work bench Size Item No. F1 L D ER-20QF 338220000 45 45 87 107520020 ER-25QF 338225000 55 45 97 107525020 ER-32QF 338232000 65 60 107 107532020 ER-40QF 338240000 75 60 117 107540020 ER-50QF 338250000 86 80 127 107550020 Dimensions in mm Mounting device “Toolboy” (PWB Systems) for easy tool change of QuickFlex® adapters on the work bench, indexable Modular insert QuickFlex® Holder Base block to adapt mounting device “Toolboy” to match base block: with holder: - WTO 338200000 - PWB Systems 400500 - WTO 338200001 - PWB Systems 400141-8 (C8) Size Item No. ER-20QF 338220010 107520020 ER-25QF 338225010 107525020 ER-32QF 338232010 107532020 ER-40QF 338240010 107540020 Item No. Holder Item No. Base block ER-50QF 338250010 107550020 338200001 338200000 14 © WTO GmbH I Subject to change without notice
