Каталог WTO инструмент для обрабатывающих центров - страница 71

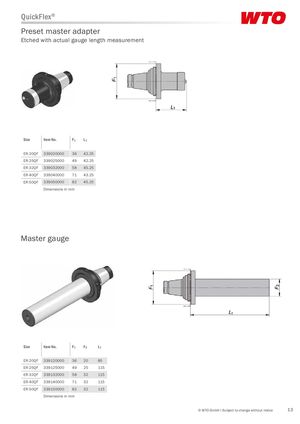

QuickFlex® Preset master adapter Etched with actual gauge length measurement Size Item No. F1 L1 ER-20QF 339020000 36 42.25 ER-25QF 339025000 49 42.25 ER-32QF 339032000 58 45.25 ER-40QF 339040000 71 43.25 ER-50QF 339050000 82 45.25 Dimensions in mm Master gauge Size Item No. F1 F2 L1 ER-20QF 339120000 36 20 85 ER-25QF 339125000 49 25 115 ER-32QF 339132000 58 32 115 ER-40QF 339140000 71 32 115 ER-50QF 339150000 82 32 115 Dimensions in mm © WTO GmbH I Subject to change without notice 13
