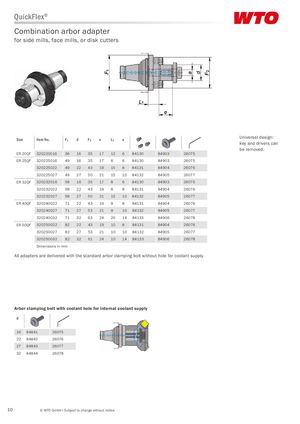

QuickFlex® Combination arbor adapter for side mills, face mills, or disk cutters Size Item No. F1 d F2 e L1 a Universal design: key and drivers can be removed. ER-20QF 320220016 36 16 35 17 12 6 84130 84903 26075 ER-25QF 320225016 49 16 35 17 8 6 84130 84903 26075 320225022 49 22 43 19 15 8 84131 84904 26076 320225027 49 27 50 21 15 10 84132 84905 26077 ER-32QF 320232016 58 16 35 17 8 6 84130 84903 26075 320232022 58 22 43 19 8 8 84131 84904 26076 320232027 58 27 50 21 15 10 84132 84905 26077 ER-40QF 320240022 71 22 43 19 9 8 84131 84904 26076 320240027 71 27 53 21 9 10 84132 84905 26077 320240032 71 32 63 24 20 14 84133 84906 26078 ER-50QF 320250022 82 22 43 19 10 8 84131 84904 26076 320250027 82 27 53 21 10 10 84132 84905 26077 320250032 82 32 61 24 10 14 84133 84906 26078 Dimensions in mm All adapters are delivered with the standard arbor clamping bolt without hole for coolant supply. Arbor clamping bolt with coolant hole for internal coolant supply d 16 84841 26075 22 84842 26076 27 84843 26077 32 84844 26078 10 © WTO GmbH I Subject to change without notice
