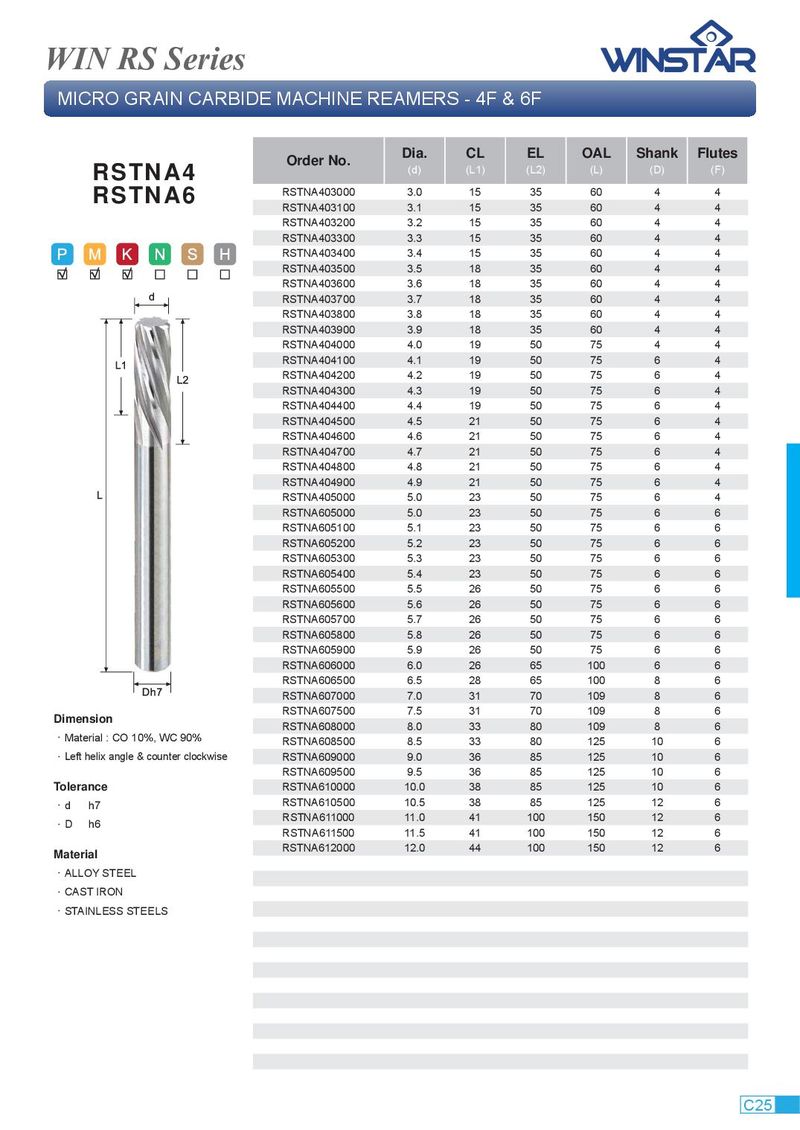

WIN RS Series MICRO GRAIN CARBIDE MACHINE REAMERS - 4F & 6F Dia. CL EL OAL Shank Flutes Order No. (d) (L1) (L2) (L) (D) (F) RSTNA4 RSTNA403000 3.0 15 35 60 4 4 RSTNA6 RSTNA403100 3.1 15 35 60 4 4 RSTNA403200 3.2 15 35 60 4 4 RSTNA403300 3.3 15 35 60 4 4 RSTNA403400 3.4 15 35 60 4 4 RSTNA403500 3.5 18 35 60 4 4 RSTNA403600 3.6 18 35 60 4 4 RSTNA403700 3.7 18 35 60 4 4 RSTNA403800 3.8 18 35 60 4 4 RSTNA403900 3.9 18 35 60 4 4 RSTNA404000 4.0 19 50 75 4 4 RSTNA404100 4.1 19 50 75 6 4 RSTNA404200 4.2 19 50 75 6 4 RSTNA404300 4.3 19 50 75 6 4 RSTNA404400 4.4 19 50 75 6 4 RSTNA404500 4.5 21 50 75 6 4 RSTNA404600 4.6 21 50 75 6 4 RSTNA404700 4.7 21 50 75 6 4 RSTNA404800 4.8 21 50 75 6 4 RSTNA404900 4.9 21 50 75 6 4 RSTNA405000 5.0 23 50 75 6 4 RSTNA605000 5.0 23 50 75 6 6 RSTNA605100 5.1 23 50 75 6 6 RSTNA605200 5.2 23 50 75 6 6 RSTNA605300 5.3 23 50 75 6 6 RSTNA605400 5.4 23 50 75 6 6 RSTNA605500 5.5 26 50 75 6 6 RSTNA605600 5.6 26 50 75 6 6 RSTNA605700 5.7 26 50 75 6 6 RSTNA605800 5.8 26 50 75 6 6 RSTNA605900 5.9 26 50 75 6 6 RSTNA606000 6.0 26 65 100 6 6 RSTNA606500 6.5 28 65 100 8 6 RSTNA607000 7.0 31 70 109 8 6 RSTNA607500 7.5 31 70 109 8 6 Dimension RSTNA608000 8.0 33 80 109 8 6 ． Material : CO 10%, WC 90% RSTNA608500 8.5 33 80 125 10 6 ． Left helix angle & counter clockwise RSTNA609000 9.0 36 85 125 10 6 RSTNA609500 9.5 36 85 125 10 6 Tolerance RSTNA610000 10.0 38 85 125 10 6 ． d h7 RSTNA610500 10.5 38 85 125 12 6 RSTNA611000 11.0 41 100 150 12 6 ． D h6 RSTNA611500 11.5 41 100 150 12 6 RSTNA612000 12.0 44 100 150 12 6 Material ． ALLOY STEEL ． CAST IRON ． STAINLESS STEELS C25
