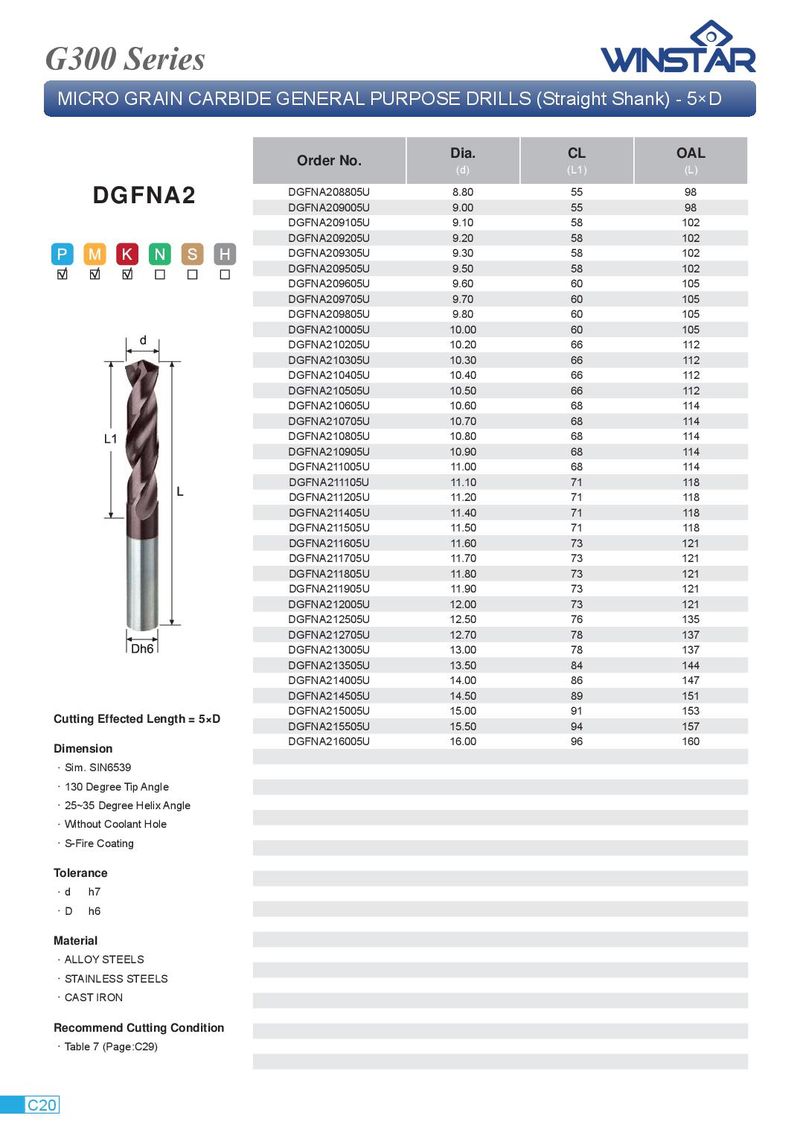

G300 Series MICRO GRAIN CARBIDE GENERAL PURPOSE DRILLS (Straight Shank) - 5×D Dia. CL OAL Order No. (d) (L1) (L) DGFNA208805U 8.80 55 98 DGFNA2 DGFNA209005U 9.00 55 98 DGFNA209105U 9.10 58 102 DGFNA209205U 9.20 58 102 DGFNA209305U 9.30 58 102 DGFNA209505U 9.50 58 102 DGFNA209605U 9.60 60 105 DGFNA209705U 9.70 60 105 DGFNA209805U 9.80 60 105 DGFNA210005U 10.00 60 105 DGFNA210205U 10.20 66 112 DGFNA210305U 10.30 66 112 DGFNA210405U 10.40 66 112 DGFNA210505U 10.50 66 112 DGFNA210605U 10.60 68 114 DGFNA210705U 10.70 68 114 DGFNA210805U 10.80 68 114 DGFNA210905U 10.90 68 114 DGFNA211005U 11.00 68 114 DGFNA211105U 11.10 71 118 DGFNA211205U 11.20 71 118 DGFNA211405U 11.40 71 118 DGFNA211505U 11.50 71 118 DGFNA211605U 11.60 73 121 DGFNA211705U 11.70 73 121 DGFNA211805U 11.80 73 121 DGFNA211905U 11.90 73 121 DGFNA212005U 12.00 73 121 DGFNA212505U 12.50 76 135 DGFNA212705U 12.70 78 137 DGFNA213005U 13.00 78 137 DGFNA213505U 13.50 84 144 DGFNA214005U 14.00 86 147 DGFNA214505U 14.50 89 151 DGFNA215005U 15.00 91 153 Cutting Effected Length = 5×D DGFNA215505U 15.50 94 157 DGFNA216005U 16.00 96 160 Dimension ． Sim. SIN6539 ． 130 Degree Tip Angle ． 25~35 Degree Helix Angle ． Without Coolant Hole ． S-Fire Coating Tolerance ． d h7 ． D h6 Material ． ALLOY STEELS ． STAINLESS STEELS ． CAST IRON Recommend Cutting Condition ． Table 7 (Page:C29) C20
