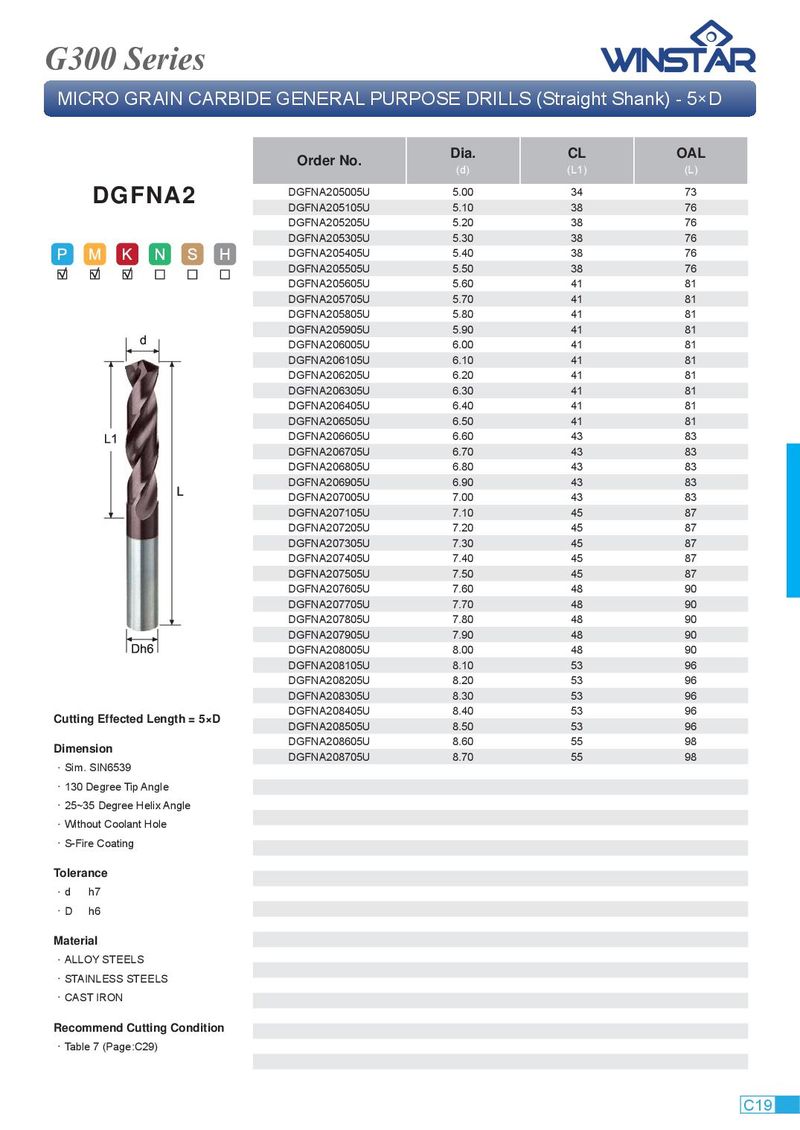

G300 Series MICRO GRAIN CARBIDE GENERAL PURPOSE DRILLS (Straight Shank) - 5×D Dia. CL OAL Order No. (d) (L1) (L) DGFNA205005U 5.00 34 73 DGFNA2 DGFNA205105U 5.10 38 76 DGFNA205205U 5.20 38 76 DGFNA205305U 5.30 38 76 DGFNA205405U 5.40 38 76 DGFNA205505U 5.50 38 76 DGFNA205605U 5.60 41 81 DGFNA205705U 5.70 41 81 DGFNA205805U 5.80 41 81 DGFNA205905U 5.90 41 81 DGFNA206005U 6.00 41 81 DGFNA206105U 6.10 41 81 DGFNA206205U 6.20 41 81 DGFNA206305U 6.30 41 81 DGFNA206405U 6.40 41 81 DGFNA206505U 6.50 41 81 DGFNA206605U 6.60 43 83 DGFNA206705U 6.70 43 83 DGFNA206805U 6.80 43 83 DGFNA206905U 6.90 43 83 DGFNA207005U 7.00 43 83 DGFNA207105U 7.10 45 87 DGFNA207205U 7.20 45 87 DGFNA207305U 7.30 45 87 DGFNA207405U 7.40 45 87 DGFNA207505U 7.50 45 87 DGFNA207605U 7.60 48 90 DGFNA207705U 7.70 48 90 DGFNA207805U 7.80 48 90 DGFNA207905U 7.90 48 90 DGFNA208005U 8.00 48 90 DGFNA208105U 8.10 53 96 DGFNA208205U 8.20 53 96 DGFNA208305U 8.30 53 96 DGFNA208405U 8.40 53 96 Cutting Effected Length = 5×D DGFNA208505U 8.50 53 96 DGFNA208605U 8.60 55 98 Dimension DGFNA208705U 8.70 55 98 ． Sim. SIN6539 ． 130 Degree Tip Angle ． 25~35 Degree Helix Angle ． Without Coolant Hole ． S-Fire Coating Tolerance ． d h7 ． D h6 Material ． ALLOY STEELS ． STAINLESS STEELS ． CAST IRON Recommend Cutting Condition ． Table 7 (Page:C29) C19
