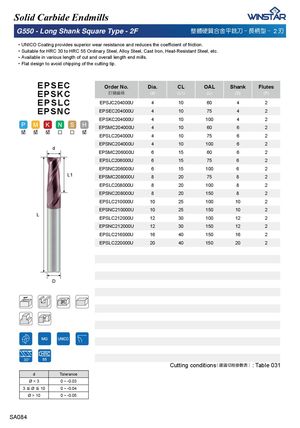

Solid Carbide Endmills G550 - Long Shank Square Type - 2F 㜃汣䧻幹▗捠。搠⎏ . 朆㥓⤚ .!2 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚAvailable in various length of cut and overall length end mills. ᅚFlat design to avoid chipping of the cutting tip. EPSEC Order No. Dia. CL OAL Shank Flutes EPSKC 宑庋佷䩋 (d) (L1) (L) (D) (F) EPSLC EPSJC204000U 4 10 60 4 2 EPSNC EPSEC204000U 4 10 75 4 2 EPSKC204000U 4 10 100 4 2 EPSMC204000U 4 10 60 6 2 EPSLC204000U 4 10 75 6 2 EPSNC204000U 4 10 100 6 2 d EPSMC206000U 6 15 60 6 2 EPSLC206000U 6 15 75 6 2 EPSNC206000U 6 15 100 6 2 L1 EPSMC208000U 8 20 75 8 2 EPSLC208000U 8 20 100 8 2 EPSNC208000U 8 20 150 8 2 EPSLC210000U 10 25 100 10 2 EPSNC210000U 10 25 150 10 2 L EPSLC212000U 12 30 100 12 2 EPSNC212000U 12 30 150 12 2 EPSLC216000U 16 40 150 16 2 EPSLC220000U 20 40 150 20 2 D 30° Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 031 d Tolerance Ø<3 0 ~ -0.03 3 Ŝ Ø Ŝ 10 0 ~ -0.04 Ø > 10 0 ~ -0.05 SA084
