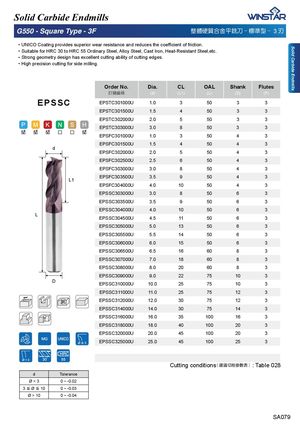

Solid Carbide Endmills Solid Carbide Endmills G550 - Square Type - 3F 㜃汣䧻幹▗捠。搠⎏ . 㮨䀥⤚ .!3 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel,etc. ᅚStrong geometry design has excellent cutting ability of cutting edges. ᅚHigh precision cutting for side milling. Order No. Dia. CL OAL Shank Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) EPSSC EPSTC301000U 1.0 3 50 3 3 EPSTC301500U 1.5 4 50 3 3 EPSTC302000U 2.0 5 50 3 3 EPSTC303000U 3.0 8 50 3 3 EPSFC301000U 1.0 3 50 4 3 EPSFC301500U 1.5 4 50 4 3 d EPSFC302000U 2.0 5 50 4 3 EPSFC302500U 2.5 6 50 4 3 EPSFC303000U 3.0 8 50 4 3 L1 EPSFC303500U 3.5 9 50 4 3 EPSFC304000U 4.0 10 50 4 3 EPSSC303000U 3.0 8 50 6 3 EPSSC303500U 3.5 9 50 6 3 EPSSC304000U 4.0 10 50 6 3 L EPSSC304500U 4.5 11 50 6 3 EPSSC305000U 5.0 13 50 6 3 EPSSC305500U 5.5 14 50 6 3 EPSSC306000U 6.0 15 50 6 3 EPSSC306500U 6.5 16 60 8 3 EPSSC307000U 7.0 18 60 8 3 EPSSC308000U 8.0 20 60 8 3 EPSSC309000U 9.0 22 75 10 3 D EPSSC310000U 10.0 25 75 10 3 EPSSC311000U 11.0 25 75 12 3 EPSSC312000U 12.0 30 75 12 3 EPSSC314000U 14.0 30 75 14 3 EPSSC316000U 16.0 35 100 16 3 EPSSC318000U 18.0 40 100 20 3 EPSSC320000U 20.0 45 100 20 3 EPSSC325000U 25.0 45 100 25 3 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 028 d Tolerance Ø<3 0 ~ -0.02 3 Ŝ Ø Ŝ 10 0 ~ -0.03 Ø > 10 0 ~ -0.04 SA079
