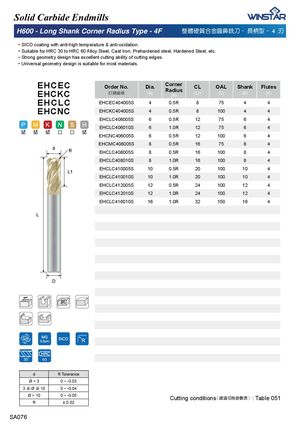

Solid Carbide Endmills H600 - Long Shank Corner Radius Type - 4F 㜃汣䧻幹▗捠⢢烊搠⎏ .!朆㥓⤚ .!4!⎒ ᅚ SICO coating with anti-high temperature & anti-oxidation. ᅚ Suitable for HRC 30 to HRC 60 Alloy Steel, Cast Iron, Prehardened steel, Hardened Steel, etc. ᅚ Strong geometry design has excellent cutting ability of cutting edges. ᅚ Universal geometry design is suitable for most materials. EHCEC Order No. Dia. Corner Radius CL OAL Shank Flutes EHCKC 宑庋佷䩋 (d) (R) (L1) (L) (D) (F) EHCLC EHCEC404005S 4 0.5R 8 75 4 4 EHCNC EHCKC404005S 4 0.5R 8 100 4 4 EHCLC406005S 6 0.5R 12 75 6 4 EHCLC406010S 6 1.0R 12 75 6 4 EHCNC406005S 6 0.5R 12 100 6 4 EHCMC408005S 8 0.5R 16 75 8 4 d R EHCLC408005S 8 0.5R 16 100 8 4 EHCLC408010S 8 1.0R 16 100 8 4 EHCLC410005S 10 0.5R 20 100 10 4 L1 EHCLC410010S 10 1.0R 20 100 10 4 EHCLC412005S 12 0.5R 24 100 12 4 EHCLC412010S 12 1.0R 24 100 12 4 EHCLC416010S 16 1.0R 32 150 16 4 L D 60 d R Tolerance Ø<3 0 ~ -0.03 3 Ŝ Ø Ŝ 10 0 ~ -0.04 Ø > 10 0 ~ -0.05 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 051 R ± 0.02 SA076
