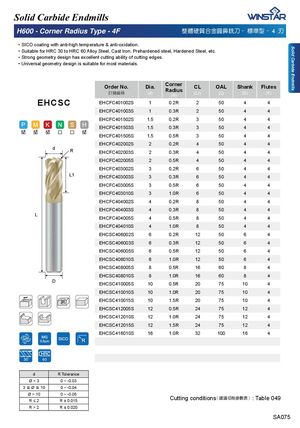

Solid Carbide Endmills H600 - Corner Radius Type - 4F 㜃汣䧻幹▗捠⢢烊搠⎏ .!㮨䀥⤚ .!4!⎒ ᅚ SICO coating with anti-high temperature & anti-oxidation. Solid Carbide Endmills ᅚ Suitable for HRC 30 to HRC 60 Alloy Steel, Cast Iron, Prehardened steel, Hardened Steel, etc. ᅚ Strong geometry design has excellent cutting ability of cutting edges. ᅚ Universal geometry design is suitable for most materials. Order No. Dia. Corner CL OAL Shank Flutes 宑庋佷䩋 (d) Radius (L1) (L) (D) (F) (R) EHCSC EHCFC401002S 1 0.2R 2 50 4 4 EHCFC401003S 1 0.3R 2 50 4 4 EHCFC401502S 1.5 0.2R 3 50 4 4 EHCFC401503S 1.5 0.3R 3 50 4 4 EHCFC401505S 1.5 0.5R 3 50 4 4 EHCFC402002S 2 0.2R 4 50 4 4 d R EHCFC402003S 2 0.3R 4 50 4 4 EHCFC402005S 2 0.5R 4 50 4 4 EHCFC403002S 3 0.2R 6 50 4 4 L1 EHCFC403003S 3 0.3R 6 50 4 4 EHCFC403005S 3 0.5R 6 50 4 4 EHCFC403010S 3 1.0R 6 50 4 4 EHCFC404002S 4 0.2R 8 50 4 4 EHCFC404003S 4 0.3R 8 50 4 4 L EHCFC404005S 4 0.5R 8 50 4 4 EHCFC404010S 4 1.0R 8 50 4 4 EHCSC406002S 6 0.2R 12 50 6 4 EHCSC406003S 6 0.3R 12 50 6 4 EHCSC406005S 6 0.5R 12 50 6 4 EHCSC406010S 6 1.0R 12 50 6 4 EHCSC408005S 8 0.5R 16 60 8 4 EHCSC408010S 8 1.0R 16 60 8 4 D EHCSC410005S 10 0.5R 20 75 10 4 EHCSC410010S 10 1.0R 20 75 10 4 EHCSC410015S 10 1.5R 20 75 10 4 EHCSC412005S 12 0.5R 24 75 12 4 EHCSC412010S 12 1.0R 24 75 12 4 EHCSC412015S 12 1.5R 24 75 12 4 EHCSC416010S 16 1.0R 32 100 16 4 60 d R Tolerance Ø<3 0 ~ -0.03 3 Ŝ Ø Ŝ 10 0 ~ -0.04 Ø > 10 0 ~ -0.05 5” R ± 0.015 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 049 R>2 R ± 0.020 SA075
