Каталог Winstar монолитный инструмент 2020 - страница 83

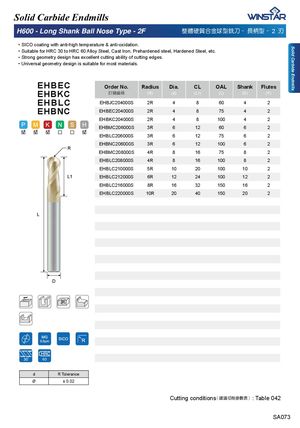

Solid Carbide Endmills H600 - Long Shank Ball Nose Type - 2F 㜃汣䧻幹▗捠䖒⤚搠⎏ .!朆㥓⤚ .!2!⎒ ᅚ SICO coating with anti-high temperature & anti-oxidation. Solid Carbide Endmills ᅚ Suitable for HRC 30 to HRC 60 Alloy Steel, Cast Iron, Prehardened steel, Hardened Steel, etc. ᅚ Strong geometry design has excellent cutting ability of cutting edges. ᅚ Universal geometry design is suitable for most materials. EHBEC Order No. Radius Dia. CL OAL Shank Flutes EHBKC 宑庋佷䩋 (R) (d) (L1) (L) (D) (F) EHBLC EHBJC204000S 2R 4 8 60 4 2 EHBNC EHBEC204000S 2R 4 8 75 4 2 EHBKC204000S 2R 4 8 100 4 2 EHBMC206000S 3R 6 12 60 6 2 EHBLC206000S 3R 6 12 75 6 2 EHBNC206000S 3R 6 12 100 6 2 R EHBMC208000S 4R 8 16 75 8 2 EHBLC208000S 4R 8 16 100 8 2 EHBLC210000S 5R 10 20 100 10 2 L1 EHBLC212000S 6R 12 24 100 12 2 EHBLC216000S 8R 16 32 150 16 2 EHBLC220000S 10R 20 40 150 20 2 L D 60 d R Tolerance Ø ± 0.02 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 042 SA073
