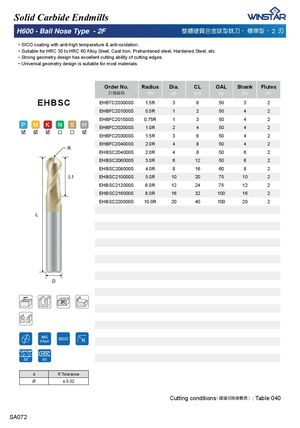

Solid Carbide Endmills H600 - Ball Nose Type - 2F 㜃汣䧻幹▗捠䖒⤚搠⎏ .!㮨䀥⤚ .!2!⎒ ᅚ SICO coating with anti-high temperature & anti-oxidation. ᅚ Suitable for HRC 30 to HRC 60 Alloy Steel, Cast Iron, Prehardened steel, Hardened Steel, etc. ᅚ Strong geometry design has excellent cutting ability of cutting edges. ᅚ Universal geometry design is suitable for most materials. Order No. Radius Dia. CL OAL Shank Flutes 宑庋佷䩋 (R) (d) (L1) (L) (D) (F) EHBSC EHBTC203000S 1.5R 3 6 50 3 2 EHBFC201000S 0.5R 1 2 50 4 2 EHBFC201500S 0.75R 1 3 50 4 2 EHBFC202000S 1.0R 2 4 50 4 2 EHBFC203000S 1.5R 3 6 50 4 2 EHBFC204000S 2.0R 4 8 50 4 2 R EHBSC204000S 2.0R 4 8 50 6 2 EHBSC206000S 3.0R 6 12 50 6 2 EHBSC208000S 4.0R 8 16 60 8 2 L1 EHBSC210000S 5.0R 10 20 75 10 2 EHBSC212000S 6.0R 12 24 75 12 2 EHBSC216000S 8.0R 16 32 100 16 2 EHBSC220000S 10.0R 20 40 100 20 2 L D 60 d R Tolerance Ø ± 0.02 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 040 SA072
