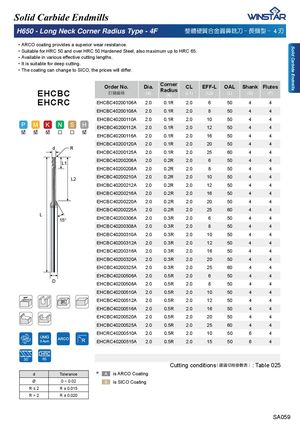

Каталог Winstar монолитный инструмент 2020 - страница 69

Предыдущая страница Следующая страница

Навигация

ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚ$YDLODEOHLQYDULRXVHႇHFWLYHFXWWLQJOHQJWKV ᅚIt is suitable for deep cutting. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU

Order No. ����Dia. (d)Corner Radius (R)CL (L1)EFF-L (L2)OAL (L)Shank (D)Flutes (F)
EHCBC40200106A2.00.1R2.065044
EHCBC40200108A2.00.1R2.085044
EHCBC40200110A2.00.1R2.0105044
EHCBC40200112A2.00.1R2.0125044
EHCBC40200116A2.00.1R2.0165044
EHCBC40200120A2.00.1R2.0205044
EHCBC40200125A2.00.1R2.0256044
EHCBC40200206A2.00.2R2.065044
EHCBC40200208A2.00.2R2.085044
EHCBC40200210A2.00.2R2.0105044
EHCBC40200212A2.00.2R2.0125044
EHCBC40200216A2.00.2R2.0165044
EHCBC40200220A2.00.2R2.0205044
EHCBC40200225A2.00.2R2.0256044
EHCBC40200306A2.00.3R2.065044
EHCBC40200308A2.00.3R2.085044
EHCBC40200310A2.00.3R2.0105044
EHCBC40200312A2.00.3R2.0125044
EHCBC40200316A2.00.3R2.0165044
EHCBC40200320A2.00.3R2.0205044
EHCBC40200325A2.00.3R2.0256044
EHCBC40200506A2.00.5R2.065044
EHCBC40200508A2.00.5R2.085044
EHCBC40200510A2.00.5R2.0105044
EHCBC40200512A2.00.5R2.0125044
EHCBC40200516A2.00.5R2.0165044
EHCBC40200520A2.00.5R2.0205044
EHCBC40200525A2.00.5R2.0256044
EHCRC40200510A2.00.5R2.0105064
EHCRC40200515A2.00.5R2.0155064

EHCRC

d R

L1

L2

L

D

65

Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 025

dTolerance✽is ARCO Coating
Ø0 ~ 0.02is SICO Coating
�����R ± 0.015
R > 2R ± 0.020
