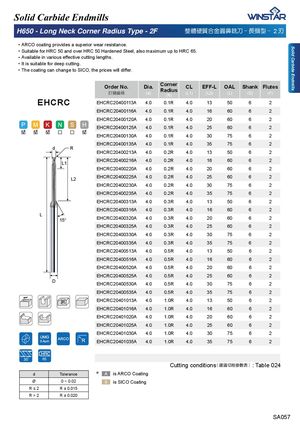

Каталог Winstar монолитный инструмент 2020 - страница 67
Навигация
Общий каталог Winstar 2015 - 2016
Брошюра Winstar пластины 2021
Каталог Winstar сверление
Каталог Winstar инструмент со сменными пластинами 2020
Каталог Winstar твердосплавные пластины и вставки
Брошюра Winstar основная номенклатура 2021
ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚ$YDLODEOHLQYDULRXVHႇHFWLYHFXWWLQJOHQJWKV ᅚIt is suitable for deep cutting. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Dia. (d) | Corner Radius (R) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHCRC20400113A | 4.0 | 0.1R | 4.0 | 13 | 50 | 6 | 2 |
| EHCRC20400116A | 4.0 | 0.1R | 4.0 | 16 | 60 | 6 | 2 |
| EHCRC20400120A | 4.0 | 0.1R | 4.0 | 20 | 60 | 6 | 2 |
| EHCRC20400125A | 4.0 | 0.1R | 4.0 | 25 | 60 | 6 | 2 |
| EHCRC20400130A | 4.0 | 0.1R | 4.0 | 30 | 75 | 6 | 2 |
| EHCRC20400135A | 4.0 | 0.1R | 4.0 | 35 | 75 | 6 | 2 |
| EHCRC20400213A | 4.0 | 0.2R | 4.0 | 13 | 50 | 6 | 2 |
| EHCRC20400216A | 4.0 | 0.2R | 4.0 | 16 | 60 | 6 | 2 |
| EHCRC20400220A | 4.0 | 0.2R | 4.0 | 20 | 60 | 6 | 2 |
| EHCRC20400225A | 4.0 | 0.2R | 4.0 | 25 | 60 | 6 | 2 |
| EHCRC20400230A | 4.0 | 0.2R | 4.0 | 30 | 75 | 6 | 2 |
| EHCRC20400235A | 4.0 | 0.2R | 4.0 | 35 | 75 | 6 | 2 |
| EHCRC20400313A | 4.0 | 0.3R | 4.0 | 13 | 50 | 6 | 2 |
| EHCRC20400316A | 4.0 | 0.3R | 4.0 | 16 | 60 | 6 | 2 |
| EHCRC20400320A | 4.0 | 0.3R | 4.0 | 20 | 60 | 6 | 2 |
| EHCRC20400325A | 4.0 | 0.3R | 4.0 | 25 | 60 | 6 | 2 |
| EHCRC20400330A | 4.0 | 0.3R | 4.0 | 30 | 75 | 6 | 2 |
| EHCRC20400335A | 4.0 | 0.3R | 4.0 | 35 | 75 | 6 | 2 |
| EHCRC20400513A | 4.0 | 0.5R | 4.0 | 13 | 50 | 6 | 2 |
| EHCRC20400516A | 4.0 | 0.5R | 4.0 | 16 | 60 | 6 | 2 |
| EHCRC20400520A | 4.0 | 0.5R | 4.0 | 20 | 60 | 6 | 2 |
| EHCRC20400525A | 4.0 | 0.5R | 4.0 | 25 | 60 | 6 | 2 |
| EHCRC20400530A | 4.0 | 0.5R | 4.0 | 30 | 75 | 6 | 2 |
| EHCRC20400535A | 4.0 | 0.5R | 4.0 | 35 | 75 | 6 | 2 |
| EHCRC20401013A | 4.0 | 1.0R | 4.0 | 13 | 50 | 6 | 2 |
| EHCRC20401016A | 4.0 | 1.0R | 4.0 | 16 | 60 | 6 | 2 |
| EHCRC20401020A | 4.0 | 1.0R | 4.0 | 20 | 60 | 6 | 2 |
| EHCRC20401025A | 4.0 | 1.0R | 4.0 | 25 | 60 | 6 | 2 |
| EHCRC20401030A | 4.0 | 1.0R | 4.0 | 30 | 75 | 6 | 2 |
| EHCRC20401035A | 4.0 | 1.0R | 4.0 | 35 | 75 | 6 | 2 |
EHCRC
d R
L1
L2
L
D
65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 024
| d | Tolerance | ✽ | is ARCO Coating |
| Ø | 0 ~ 0.02 | is SICO Coating | |
| ����� | R ± 0.015 | ||
| R > 2 | R ± 0.020 |
