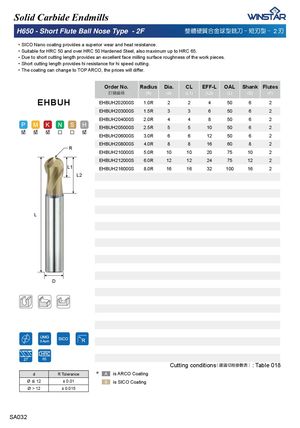

H650 - Short Flute Ball Nose Type - 2F 㜃汣䧻幹▗捠䖒⤚搠⎏ . 䥼⎒⤚ .!2 ⎒
ᅚSICO Nano coating provides a superior wear and heat resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚDue to short cutting length provides an excellent face milling surface roughness of the work pieces. ᅚShort cutting length provides hi resistance for hi speed cutting. ᅚ7KHFRDWLQJFDQFKDQJHWR723$5&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Radius (R) | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHBUH202000S | 1.0R | 2 | 2 | 4 | 50 | 6 | 2 |
| EHBUH203000S | 1.5R | 3 | 3 | 6 | 50 | 6 | 2 |
| EHBUH204000S | 2.0R | 4 | 4 | 8 | 50 | 6 | 2 |
| EHBUH205000S | 2.5R | 5 | 5 | 10 | 50 | 6 | 2 |
| EHBUH206000S | 3.0R | 6 | 6 | 12 | 50 | 6 | 2 |
| EHBUH208000S | 4.0R | 8 | 8 | 16 | 60 | 8 | 2 |
| EHBUH210000S | 5.0R | 10 | 10 | 20 | 75 | 10 | 2 |
| EHBUH212000S | 6.0R | 12 | 12 | 24 | 75 | 12 | 2 |
| EHBUH216000S | 8.0R | 16 | 16 | 32 | 100 | 16 | 2 |
EHBUH
R
L2
L
D
65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 018
| d | R Tolerance | ✽ | is ARCO Coating |
| Ø�12 | ± 0.01 | is SICO Coating | |
| Ø�> 12 | ± 0.015 |
