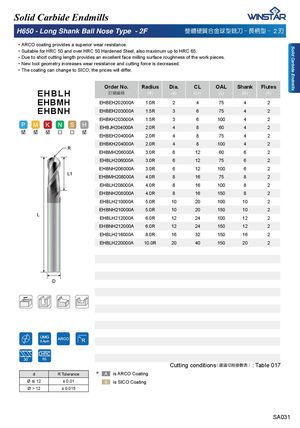

H650 - Long Shank Ball Nose Type - 2F 㜃汣䧻幹▗捠䖒⤚搠⎏ . 朆㥓⤚ .!2 ⎒
ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚDue to short cutting length provides an excellent face milling surface roughness of the work pieces. ᅚNew tool geometry increases wear resistance and cutting force is decreased. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Radius (R) | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EHBEH202000A | 1.0R | 2 | 4 | 75 | 4 | 2 |
| EHBEH203000A | 1.5R | 3 | 6 | 75 | 4 | 2 |
| EHBKH203000A | 1.5R | 3 | 6 | 100 | 4 | 2 |
| EHBJH204000A | 2.0R | 4 | 8 | 60 | 4 | 2 |
| EHBEH204000A | 2.0R | 4 | 8 | 75 | 4 | 2 |
| EHBKH204000A | 2.0R | 4 | 8 | 100 | 4 | 2 |
| EHBMH206000A | 3.0R | 6 | 12 | 60 | 6 | 2 |
| EHBLH206000A | 3.0R | 6 | 12 | 75 | 6 | 2 |
| EHBNH206000A | 3.0R | 6 | 12 | 100 | 6 | 2 |
| EHBMH208000A | 4.0R | 8 | 16 | 75 | 8 | 2 |
| EHBLH208000A | 4.0R | 8 | 16 | 100 | 8 | 2 |
| EHBNH208000A | 4.0R | 8 | 16 | 150 | 8 | 2 |
| EHBLH210000A | 5.0R | 10 | 20 | 100 | 10 | 2 |
| EHBNH210000A | 5.0R | 10 | 20 | 150 | 10 | 2 |
| EHBLH212000A | 6.0R | 12 | 24 | 100 | 12 | 2 |
| EHBNH212000A | 6.0R | 12 | 24 | 150 | 12 | 2 |
| EHBLH216000A | 8.0R | 16 | 32 | 150 | 16 | 2 |
| EHBLH220000A | 10.0R | 20 | 40 | 150 | 20 | 2 |
EHBLH
EHBMH
EHBNH
R
L1
L
D
65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 017
| d | R Tolerance | ✽ | is ARCO Coating |
| Ø�12 | ± 0.01 | is SICO Coating | |
| Ø�> 12 | ± 0.015 |
