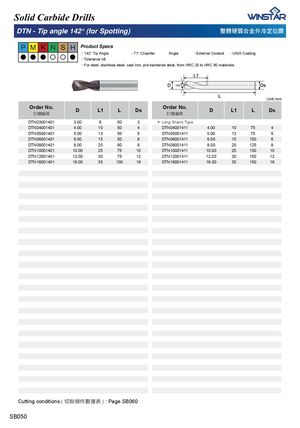

Каталог Winstar монолитный инструмент 2020 - страница 324

Solid Carbide Drills DTN - Tip angle 142° (for Spotting) 㜃汣䧻幹▗捠⪥⍆⴩⃜昌 P M K N S H Product Specs 虉142° Tip Angleβββΰΰβ虉Tolerance h8虉71° Chamfer Angle 虉External Coolant 虉UNIX Coating 虉For steel, stainless steel, cast iron, pre-hardened steel, from HRC 20 to HRC 60 materials. 142 Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DTN03001401 3.00 8 50 3 ρ Long Shank Type DTN04001401 4.00 10 50 4 DTN04001411 4.00 10 75 4 DTN05001401 5.00 13 50 5 DTN05001411 5.00 13 75 5 DTN06001401 6.00 15 50 6 DTN06001411 6.00 15 100 6 DTN08001401 8.00 20 60 8 DTN08001411 8.00 20 125 8 DTN10001401 10.00 25 75 10 DTN10001411 10.00 25 150 10 DTN12001401 12.00 30 75 12 DTN12001411 12.00 30 150 12 DTN16001401 16.00 35 100 16 DTN16001411 16.00 35 150 16 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB060 SB050
