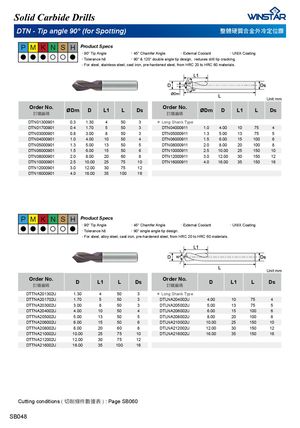

Solid Carbide Drills DTN - Tip angle 90° (for Spotting) 整體硬質合金外冷定位鑽 P M K N S H Product Specs ．90° Tip Angle ．45° Chamfer Angle ．External Coolant ．UNIX Coating ● ● ● ○ ○ ● ．Tolerance h8 ．90˚ & 120˚ double angle tip design, reduces drill tip cracking. ．For steel, stainless steel, cast iron, pre-hardened steel, from HRC 20 to HRC 60 materials. Unit:mm Order No.訂購編碼 ØDm D L1 L Ds Order No.訂購編碼 ØDm D L1 L Ds DTN01300901 0.3 1.30 4 50 3 ✽ Long Shank Type DTN01700901 0.4 1.70 5 50 3 DTN04000911 1.0 4.00 10 75 4 DTN03000901 0.8 3.00 8 50 3 DTN05000911 1.3 5.00 13 75 5 DTN04000901 1.0 4.00 10 50 4 DTN06000911 1.5 6.00 15 100 6 DTN05000901 1.3 5.00 13 50 5 DTN08000911 2.0 8.00 20 100 8 DTN06000901 1.5 6.00 15 50 6 DTN10000911 2.5 10.00 25 150 10 DTN08000901 2.0 8.00 20 60 8 DTN12000911 3.0 12.00 30 150 12 DTN10000901 2.5 10.00 25 75 10 DTN16000911 4.0 16.00 35 150 16 DTN12000901 3.0 12.00 30 75 12 DTN16000901 4.0 16.00 35 100 16 P M K N S H Product Specs ．90° Tip Angle ．45° Chamfer Angle ．External Coolant ．UNIX Coating ● ● ● ○ ○ ● ．Tolerance h8 ．90˚ single angle tip design. ．For steel, alloy steel, cast iron, pre-hardened steel, from HRC 20 to HRC 60 materials. Unit:mm Order No.訂購編碼 D L1 L Ds Order No.訂購編碼 D L1 L Ds DTTNA201302U 1.30 4 50 3 ✽ Long Shank Type DTTNA201702U 1.70 5 50 3 DTLNA204002U 4.00 10 75 4 DTTNA203002U 3.00 8 50 3 DTLNA205002U 5.00 13 75 5 DTTNA204002U 4.00 10 50 4 DTLNA206002U 6.00 15 100 6 DTTNA205002U 5.00 13 50 5 DTLNA208002U 8.00 20 100 8 DTTNA206002U 6.00 15 50 6 DTLNA210002U 10.00 25 150 10 DTTNA208002U 8.00 20 60 8 DTLNA212002U 12.00 30 150 12 DTTNA210002U 10.00 25 75 10 DTLNA216002U 16.00 35 150 16 DTTNA212002U 12.00 30 75 12 DTTNA216002U 16.00 35 100 16 Cutting conditions ( 切削條件數據表 ) : Page SB060 SB048
