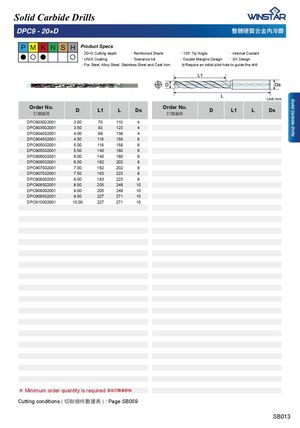

Solid Carbide Drills Solid Carbide Drills DPC9 - 20×D 㜃汣䧻幹▗捠⋶⍆昌 P M K N S H Product Specs 虉20×D Cutting depth 虉Reinforced Shank 虉135° Tip Angle 虉Internal Coolant β ΰ β ΰ 虉UNIX Coating 虉Tolerance h8 虉Double Margins Design 虉SX Design 虉For Steel, Alloy Steel, Stainless Steel and Cast Iron. ʰRequire an initial pilot hole to guide the drill. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DPC903002001 3.00 70 110 4 DPC903502001 3.50 83 123 4 DPC904002001 4.00 96 136 4 DPC904502001 4.50 118 158 6 DPC905002001 5.00 118 158 6 DPC905502001 5.50 140 180 6 DPC906002001 6.00 140 180 6 DPC906502001 6.50 162 202 8 DPC907002001 7.00 162 202 8 DPC907502001 7.50 183 223 8 DPC908002001 8.00 183 223 8 DPC908502001 8.50 205 249 10 DPC909002001 9.00 205 249 10 DPC909502001 9.50 227 271 10 DPC910002001 10.00 227 271 10 ρ Minimum order quantity is required 㢏⃝宑庋捞柟⏅ Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB059 SB013
