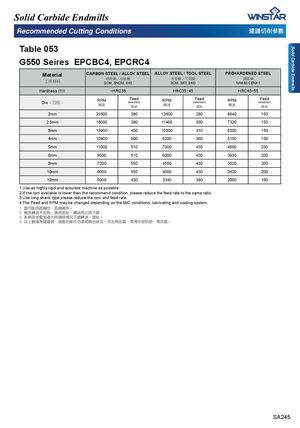

Solid Carbide Endmills Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 053 G550 Seires EPCBC4, EPCRC4 Material CARBON STEEL / ALLOY STEEL ALLOY STEEL / TOOL STEEL PREHARDENED STEEL ⽴₅㣟㜨 䩂亯撋 0 ▗捠撋 ▗捠撋 0 ⽴⌆撋 屎幹撋SCM, SNCM, S45SCM, SKT, SKDNAK80 CENA1 Hardness 䧻〵 ~HRC35 HRC35~45 HRC45~55 Dia ) ⎒ㄠ * RPM Feed (mm/min) RPM Feed (mm/min) RPM Feed (mm/min)惘憮懁仵惘憮懁仵惘憮懁仵 2mm 21600 380 13800 280 8640 150 2.5mm 18000 390 11400 300 7320 150 3mm 15900 400 10300 310 6300 150 4mm 12800 500 8200 360 5150 160 5mm 11000 510 7000 430 4560 200 6mm 9500 510 6000 430 3930 200 8mm 7200 550 4550 430 3020 200 10mm 6000 550 4000 430 2420 200 12mm 5000 430 3340 380 2000 160 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 2/ 䡰╾劌䚷汧⏪ㆶҷ汧乍㯮〙Ҹ 3/ 㯮〙惘憮ᾜ彂㟑虇屚ⶖ懁仵ҷ惘憮▛㵣ℚᾚ屎Ҹ 4/ 朆㥓⤚㎥⇞㚉懝⪶㟑屚嬥㉔㹐ᾚ屎惘憮ҷ懁仵Ҹ 5/ ⁴ᾙ㜇㙩䉉ら峿⇋虇懸䜅䠓㨬₅⁜榗嬥㯮╿䑏㹐ҷ⫍㹊⌆♐幹ҷ䃳䁠⍆┊亊伀ʫ䳘㛈崙Ҹ SA245
