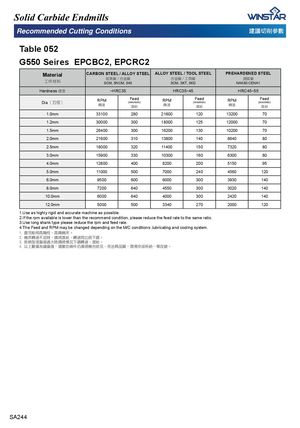

Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 052 G550 Seires EPCBC2, EPCRC2 Material CARBON STEEL / ALLOY STEEL ALLOY STEEL / TOOL STEEL PREHARDENED STEEL ⽴₅㣟㜨 䩂亯撋 0 ▗捠撋 ▗捠撋 0 ⽴⌆撋 屎幹撋SCM, SNCM, S45SCM, SKT, SKDNAK80 CENA1 Hardness 䧻〵 ~HRC35 HRC35~45 HRC45~55 Dia ) ⎒ㄠ * RPM Feed (mm/min) RPM Feed (mm/min) RPM Feed (mm/min)惘憮懁仵惘憮懁仵惘憮懁仵 1.0mm 33100 280 21600 120 13200 70 1.2mm 30000 300 18000 125 12000 70 1.5mm 26400 300 16200 130 10200 70 2.0mm 21600 310 13800 140 8640 80 2.5mm 18000 320 11400 150 7320 80 3.0mm 15900 330 10300 160 6300 80 4.0mm 12800 400 8200 200 5150 95 5.0mm 11000 500 7000 240 4560 120 6.0mm 9500 600 6000 300 3930 140 8.0mm 7200 640 4550 300 3020 140 10.0mm 6000 640 4000 300 2420 140 12.0mm 5000 500 3340 270 2000 120 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 2/ 䡰╾劌䚷汧⏪ㆶҷ汧乍㯮〙Ҹ 3/ 㯮〙惘憮ᾜ彂㟑虇屚ⶖ懁仵ҷ惘憮▛㵣ℚᾚ屎Ҹ 4/ 朆㥓⤚㎥⇞㚉懝⪶㟑屚嬥㉔㹐ᾚ屎惘憮ҷ懁仵Ҹ 5/ ⁴ᾙ㜇㙩䉉ら峿⇋虇懸䜅䠓㨬₅⁜榗嬥㯮╿䑏㹐ҷ⫍㹊⌆♐幹ҷ䃳䁠⍆┊亊伀ʫ䳘㛈崙Ҹ SA244
