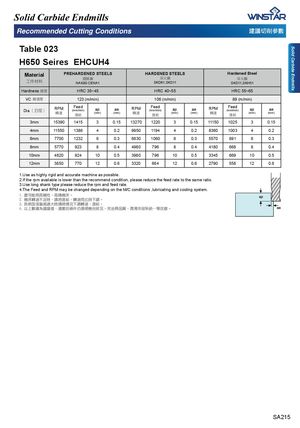

Solid Carbide Endmills Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 023 H650 Seires EHCUH4 Material PREHARDENED STEELS HARDENED STEELS Hardened Steel ⽴₅㣟㜨 屎幹撋NAK80 CENA1! 㽻䇺撋SKD61,SKD11 㽻䇺撋SKD11,SKH51 Hardness 䧻〵 HRC 35~45 HRC 40~55 HRC 55~65 VC 佩憮〵 123 (m/min) 106 (m/min) 89 (m/min) Dia ) ⎒ㄠ * RPM 惘憮 Feed (mm/min)懁仵 ap (mm) ae RPM Feed (mm/min) ap(mm)惘憮懁仵(mm)ae RPM Feed (mm/min) ap(mm)惘憮懁仵(mm)ae(mm) 3mm 15390 1415 3 0.15 13270 1220 3 0.15 11150 1025 3 0.15 4mm 11550 1386 4 0.2 9950 1194 4 0.2 8360 1003 4 0.2 6mm 7700 1232 6 0.3 6630 1060 6 0.3 5570 891 6 0.3 8mm 5770 923 8 0.4 4980 796 8 0.4 4180 668 8 0.4 10mm 4620 924 10 0.5 3980 796 10 0.5 3345 669 10 0.5 12mm 3850 770 12 0.6 3320 664 12 0.6 2790 558 12 0.6 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 2/ 䡰╾劌䚷汧⏪ㆶҷ汧乍㯮〙Ҹ 3/ 㯮〙惘憮ᾜ彂㟑虇屚ⶖ懁仵ҷ惘憮▛㵣ℚᾚ屎Ҹ 4/ 朆㥓⤚㎥⇞㚉懝⪶㟑屚嬥㉔㹐ᾚ屎惘憮ҷ懁仵Ҹ 5/ ⁴ᾙ㜇㙩䉉ら峿⇋虇懸䜅䠓㨬₅⁜榗嬥㯮╿䑏㹐ҷ⫍㹊⌆♐幹ҷ䃳䁠⍆┊亊伀ʫ䳘㛈崙Ҹ SA215
