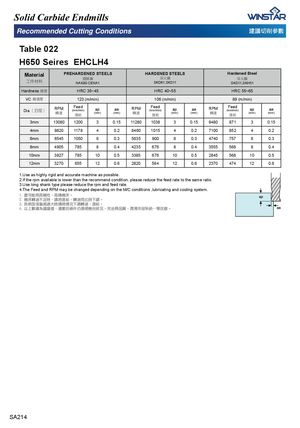

Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 022 H650 Seires EHCLH4 Material PREHARDENED STEELS HARDENED STEELS Hardened Steel ⽴₅㣟㜨 屎幹撋NAK80 CENA1! 㽻䇺撋SKD61,SKD11 㽻䇺撋SKD11,SKH51 Hardness 䧻〵 HRC 35~45 HRC 40~55 HRC 55~65 VC 佩憮〵 123 (m/min) 106 (m/min) 89 (m/min) Dia ) ⎒ㄠ * RPM 惘憮 Feed (mm/min)懁仵 ap(mm) ae RPM Feed (mm/min) ap(mm)惘憮懁仵(mm)ae RPM Feed (mm/min) ap(mm)惘憮懁仵(mm)ae(mm) 3mm 13080 1200 3 0.15 11280 1038 3 0.15 9480 871 3 0.15 4mm 9820 1178 4 0.2 8460 1015 4 0.2 7100 852 4 0.2 6mm 6545 1050 6 0.3 5635 900 6 0.3 4740 757 6 0.3 8mm 4905 785 8 0.4 4235 676 8 0.4 3555 568 8 0.4 10mm 3927 785 10 0.5 3385 676 10 0.5 2845 568 10 0.5 12mm 3270 655 12 0.6 2820 564 12 0.6 2370 474 12 0.6 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 2/ 䡰╾劌䚷汧⏪ㆶҷ汧乍㯮〙Ҹ 3/ 㯮〙惘憮ᾜ彂㟑虇屚ⶖ懁仵ҷ惘憮▛㵣ℚᾚ屎Ҹ 4/ 朆㥓⤚㎥⇞㚉懝⪶㟑屚嬥㉔㹐ᾚ屎惘憮ҷ懁仵Ҹ 5/ ⁴ᾙ㜇㙩䉉ら峿⇋虇懸䜅䠓㨬₅⁜榗嬥㯮╿䑏㹐ҷ⫍㹊⌆♐幹ҷ䃳䁠⍆┊亊伀ʫ䳘㛈崙Ҹ SA214
