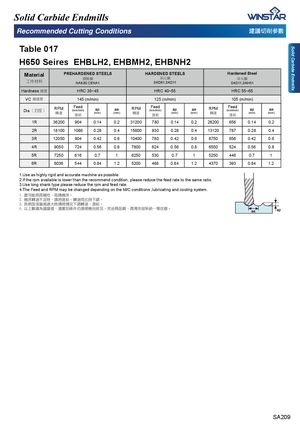

Solid Carbide Endmills Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 017 H650 Seires EHBLH2, EHBMH2, EHBNH2 Material PREHARDENED STEELS HARDENED STEELS Hardened Steel ⽴₅㣟㜨 屎幹撋NAK80 CENA1! 㽻䇺撋SKD61,SKD11 㽻䇺撋SKD11,SKH51 Hardness 䧻〵 HRC 35~45 HRC 40~55 HRC 55~65 VC 佩憮〵 145 (m/min) 125 (m/min) 105 (m/min) Dia ) ⎒ㄠ * RPM 惘憮 Feed (mm/min)懁仵 ap (mm) ae RPM Feed (mm/min) ap(mm)惘憮懁仵(mm)ae RPM Feed (mm/min) ap(mm)惘憮懁仵(mm)ae(mm) 1R 36200 904 0.14 0.2 31200 780 0.14 0.2 26200 656 0.14 0.2 2R 18100 1086 0.28 0.4 15600 930 0.28 0.4 13120 787 0.28 0.4 3R 12050 904 0.42 0.6 10400 780 0.42 0.6 8750 656 0.42 0.6 4R 9050 724 0.56 0.8 7800 624 0.56 0.8 6550 524 0.56 0.8 5R 7250 616 0.7 1 6250 530 0.7 1 5250 446 0.7 1 6R 6036 544 0.84 1.2 5200 468 0.84 1.2 4370 393 0.84 1.2 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 2/ 䡰╾劌䚷汧⏪ㆶҷ汧乍㯮〙Ҹ 3/ 㯮〙惘憮ᾜ彂㟑虇屚ⶖ懁仵ҷ惘憮▛㵣ℚᾚ屎Ҹ 4/ 朆㥓⤚㎥⇞㚉懝⪶㟑屚嬥㉔㹐ᾚ屎惘憮ҷ懁仵Ҹ 5/ ⁴ᾙ㜇㙩䉉ら峿⇋虇懸䜅䠓㨬₅⁜榗嬥㯮╿䑏㹐ҷ⫍㹊⌆♐幹ҷ䃳䁠⍆┊亊伀ʫ䳘㛈崙Ҹ SA209
