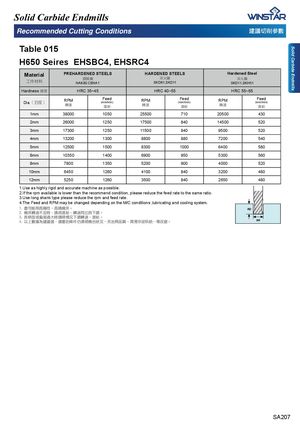

Solid Carbide Endmills Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 015 H650 Seires EHSBC4, EHSRC4 Material PREHARDENED STEELS HARDENED STEELS Hardened Steel ⽴₅㣟㜨 屎幹撋NAK80 CENA1! 㽻䇺撋SKD61,SKD11 㽻䇺撋SKD11,SKH51 Hardness 䧻〵 HRC 35~45 HRC 40~55 HRC 55~65 Dia ) ⎒ㄠ * RPM 惘憮 Feed (mm/min)懁仵 RPM惘憮 Feed (mm/min)懁仵 RPM惘憮 Feed (mm/min)懁仵 1mm 38000 1050 25500 710 20500 430 2mm 26000 1250 17500 840 14500 520 3mm 17300 1250 11500 840 9500 520 4mm 13200 1300 8800 880 7200 540 5mm 12500 1500 8300 1000 6400 580 6mm 10350 1400 6900 950 5300 560 8mm 7800 1350 5200 900 4000 520 10mm 6450 1260 4100 840 3200 480 12mm 5250 1260 3500 840 2650 480 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 2/ 䡰╾劌䚷汧⏪ㆶҷ汧乍㯮〙Ҹ 3/ 㯮〙惘憮ᾜ彂㟑虇屚ⶖ懁仵ҷ惘憮▛㵣ℚᾚ屎Ҹ 4/ 朆㥓⤚㎥⇞㚉懝⪶㟑屚嬥㉔㹐ᾚ屎惘憮ҷ懁仵Ҹ 5/ ⁴ᾙ㜇㙩䉉ら峿⇋虇懸䜅䠓㨬₅⁜榗嬥㯮╿䑏㹐ҷ⫍㹊⌆♐幹ҷ䃳䁠⍆┊亊伀ʫ䳘㛈崙Ҹ SA207
