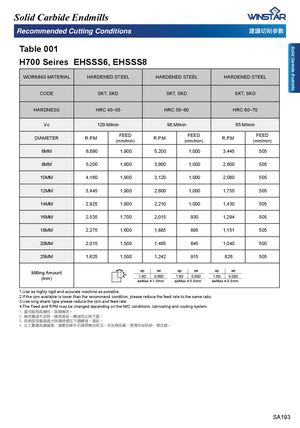

Solid Carbide Endmills Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 001 H700 Seires EHSSS6, EHSSS8 WORKING MATERIAL HARDENED STEEL HARDENED STEEL HARDENED STEEL CODE SKT, SKD SKT, SKD SKT, SKD HARDNESS HRC 45~55 HRC 55~60 HRC 60~70 Vc 129 M/min 98 M/min 65 M/min DIAMETER R.P.M FEED(mm/min) R.P.M FEED(mm/min) R.P.M FEED(mm/min) 6MM 6,890 1,900 5,200 1,000 3,445 505 8MM 5,200 1,900 3,900 1,000 2,600 505 10MM 4,160 1,900 3,120 1,000 2,080 505 12MM 3,445 1,900 2,600 1,000 1,755 505 14MM 2,925 1,800 2,210 1,000 1,430 505 16MM 2,535 1,700 2,015 930 1,294 505 18MM 2,275 1,600 1,885 895 1,151 505 20MM 2,015 1,500 1,495 845 1,040 505 25MM 1,625 1,500 1,242 915 826 505 Milling Amount (mm) 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 2/ 䡰╾劌䚷汧⏪ㆶҷ汧乍㯮〙Ҹ 3/ 㯮〙惘憮ᾜ彂㟑虇屚ⶖ懁仵ҷ惘憮▛㵣ℚᾚ屎Ҹ 4/ 朆㥓⤚㎥⇞㚉懝⪶㟑屚嬥㉔㹐ᾚ屎惘憮ҷ懁仵Ҹ 5/ ⁴ᾙ㜇㙩䉉ら峿⇋虇懸䜅䠓㨬₅⁜榗嬥㯮╿䑏㹐ҷ⫍㹊⌆♐幹ҷ䃳䁠⍆┊亊伀ʫ䳘㛈崙Ҹ SA193
