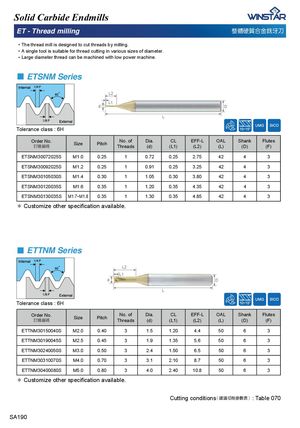

Solid Carbide Endmills ET - Thread milling 㜃汣䧻幹▗捠搠䏨⎏ ᅚ The thread mill is designed to cut threads by milling. ᅚ A single tool is suitable for thread cutting in various sizes of diameter. ᅚ Large diameter thread can be machined with low power machine. Ψ ETSNM Series L2 L1 d D L Tolerance class : 6H Order No. No. of Dia. CL EFF-L OAL Shank Flutes Size Pitch 宑庋佷䩋 Threads (d) (L1) (L2) (L) (D) (F) ETSNM30072025S M1.0 0.25 1 0.72 0.25 2.75 42 4 3 ETSNM30092025S M1.2 0.25 1 0.91 0.25 3.25 42 4 3 ETSNM30105030S M1.4 0.30 1 1.05 0.30 3.80 42 4 3 ETSNM30120035S M1.6 0.35 1 1.20 0.35 4.35 42 4 3 ETSNM30130035S M1.7~M1.8 0.35 1 1.30 0.35 4.85 42 4 3 ρ &XVWRPL]HRWKHUVSHFL¿FDWLRQDYDLODEOH Ψ ETTNM Series L2 L1 d D L Tolerance class : 6H Order No. No. of Dia. CL EFF-L OAL Shank Flutes Size Pitch 宑庋佷䩋 Threads (d) (L1) (L2) (L) (D) (F) ETTNM30150040S M2.0 0.40 3 1.5 1.20 4.4 50 6 3 ETTNM30190045S M2.5 0.45 3 1.9 1.35 5.6 50 6 3 ETTNM30240050S M3.0 0.50 3 2.4 1.50 6.5 50 6 3 ETTNM30310070S M4.0 0.70 3 3.1 2.10 8.7 50 6 3 ETTNM30400080S M5.0 0.80 3 4.0 2.40 10.8 50 6 3 ρ &XVWRPL]HRWKHUVSHFL¿FDWLRQDYDLODEOH Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 070 SA190
