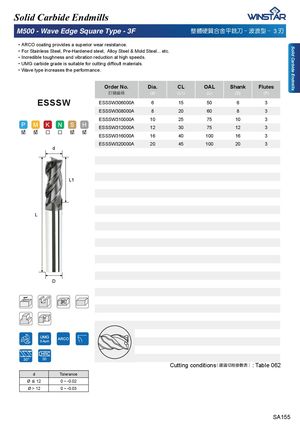

Solid Carbide Endmills Solid Carbide Endmills M500 - Wave Edge Square Type - 3F 㜃汣䧻幹▗捠。搠⎏ . 㹱㻹⤚ .!3 ⎒ ᅚARCO coating provides a superior wear resistance. ᅚFor Stainless Steel, Pre-Hardened steel, Alloy Steel & Mold Steel... etc. ᅚIncredible toughness and vibration reduction at high speeds. ᅚ 80*FDUELGHJUDGHLVVXLWDEOHIRUFXWWLQJGLႈFXOWPDWHULDOV ᅚWave type increases the performance. Order No. Dia. CL OAL Shank Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) ESSSW ESSSW306000A 6 15 50 6 3 ESSSW308000A 8 20 60 8 3 ESSSW310000A 10 25 75 10 3 ESSSW312000A 12 30 75 12 3 ESSSW316000A 16 40 100 16 3 ESSSW320000A 20 45 100 20 3 d L1 L D 50 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 062 d Tolerance Ø Ŝ 12 0 ~ -0.02 Ø > 12 0 ~ -0.03 SA155
