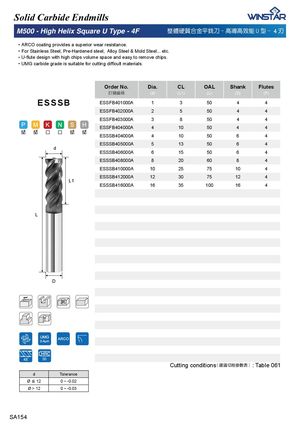

Solid Carbide Endmills M500 - High Helix Square U Type - 4F 㜃汣䧻幹▗捠。搠⎏ . 汧⶝汧㛗劌 V ⤚ .!4 ⎒ ᅚARCO coating provides a superior wear resistance. ᅚFor Stainless Steel, Pre-Hardened steel, Alloy Steel & Mold Steel... etc. ᅚ 8ÀXWHGHVLJQZLWKKLJKFKLSVYROXPHVSDFHDQGHDV\WRUHPRYHFKLSV ᅚ 80*FDUELGHJUDGHLVVXLWDEOHIRUFXWWLQJGLႈFXOWPDWHULDOV Order No. Dia. CL OAL Shank Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) ESSSB ESSFB401000A 1 3 50 4 4 ESSFB402000A 2 5 50 4 4 ESSFB403000A 3 8 50 4 4 ESSFB404000A 4 10 50 4 4 ESSSB404000A 4 10 50 6 4 ESSSB405000A 5 13 50 6 4 d ESSSB406000A 6 15 50 6 4 ESSSB408000A 8 20 60 8 4 ESSSB410000A 10 25 75 10 4 ESSSB412000A 12 30 75 12 4 L1 ESSSB416000A 16 35 100 16 4 L D 50 Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 061 d Tolerance Ø Ŝ 12 0 ~ -0.02 Ø > 12 0 ~ -0.03 SA154
