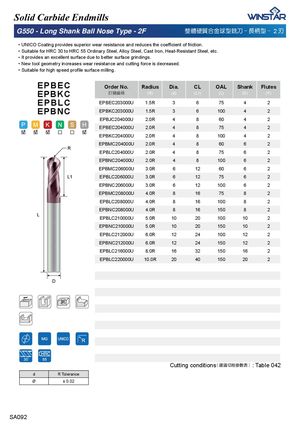

Solid Carbide Endmills G550 - Long Shank Ball Nose Type - 2F 㜃汣䧻幹▗捠䖒⤚搠⎏ . 朆㥓⤚ .!2 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ᅚIt provides an excellent surface due to better surface grindings. ᅚNew tool geometry increases wear resistance and cutting force is decreased. ᅚ 6XLWDEOHIRUKLJKVSHHGSUR¿OHVXUIDFHPLOOLQJ EPBEC Order No. Radius Dia. CL OAL Shank Flutes EPBKC 宑庋佷䩋 (R) (d) (L1) (L) (D) (F) EPBLC EPBEC203000U 1.5R 3 6 75 4 2 EPBNC EPBKC203000U 1.5R 3 6 100 4 2 EPBJC204000U 2.0R 4 8 60 4 2 EPBEC204000U 2.0R 4 8 75 4 2 EPBKC204000U 2.0R 4 8 100 4 2 EPBMC204000U 2.0R 4 8 60 6 2 R EPBLC204000U 2.0R 4 8 75 6 2 EPBNC204000U 2.0R 4 8 100 6 2 EPBMC206000U 3.0R 6 12 60 6 2 L1 EPBLC206000U 3.0R 6 12 75 6 2 EPBNC206000U 3.0R 6 12 100 6 2 EPBMC208000U 4.0R 8 16 75 8 2 EPBLC208000U 4.0R 8 16 100 8 2 EPBNC208000U 4.0R 8 16 150 8 2 L EPBLC210000U 5.0R 10 20 100 10 2 EPBNC210000U 5.0R 10 20 150 10 2 EPBLC212000U 6.0R 12 24 100 12 2 EPBNC212000U 6.0R 12 24 150 12 2 EPBLC216000U 8.0R 16 32 150 16 2 EPBLC220000U 10.0R 20 40 150 20 2 D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 042 d R Tolerance Ø ± 0.02 SA092
