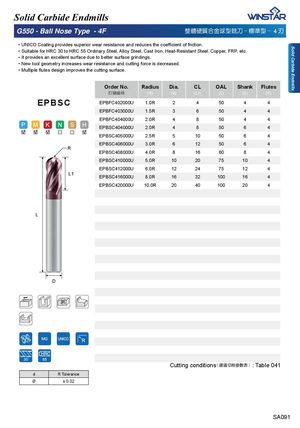

Solid Carbide Endmills Solid Carbide Endmills G550 - Ball Nose Type - 4F 㜃汣䧻幹▗捠䖒⤚搠⎏ . 㮨䀥⤚ .!4 ⎒ ᅚ 81,&2&RDWLQJSURYLGHVVXSHULRUZHDUUHVLVWDQFHDQGUHGXFHVWKHFRHႈFLHQWRIIULFWLRQ ᅚSuitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, Copper, FRP, etc. ᅚIt provides an excellent surface due to better surface grindings. ᅚNew tool geometry increases wear resistance and cutting force is decreased. ᅚ 0XOWLSOHÀXWHVGHVLJQLPSURYHVWKHFXWWLQJVXUIDFH Order No. Radius Dia. CL OAL Shank Flutes 宑庋佷䩋 (R) (d) (L1) (L) (D) (F) EPBSC EPBFC402000U 1.0R 2 4 50 4 4 EPBFC403000U 1.5R 3 6 50 4 4 EPBFC404000U 2.0R 4 8 50 4 4 EPBSC404000U 2.0R 4 8 50 6 4 EPBSC405000U 2.5R 5 10 50 6 4 EPBSC406000U 3.0R 6 12 50 6 4 R EPBSC408000U 4.0R 8 16 60 8 4 EPBSC410000U 5.0R 10 20 75 10 4 EPBSC412000U 6.0R 12 24 75 12 4 L1 EPBSC416000U 8.0R 16 32 100 16 4 EPBSC420000U 10.0R 20 40 100 20 4 L D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 041 d R Tolerance Ø ± 0.02 SA091
