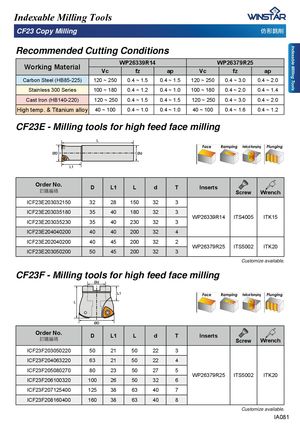

Каталог Winstar инструмент со сменными пластинами 2020 - страница 91
Навигация
Каталог Carbidex сменные пластины 2020
Каталог Winstar твердосплавные пластины и вставки
Каталог Winstar фрезерование
Каталог Winstar монолитный инструмент 2020
Общий каталог Winstar 2015 - 2016
Каталог Winstar сверление
Recommended Cutting Conditions
WP26339R14 WP26379R25
Working Material
Vc fz ap Vc fz ap
| Carbon Steel (HB85-225) | 120 ~ 250 | 0.4 ~ 1.5 | 0.4 ~ 1.5 | 120 ~ 250 | 0.4 ~ 3.0 | 0.4 ~ 2.0 | ||
| Stainless 300 Series | 100 ~ 180 | 0.4 ~ 1.2 | 0.4 ~ 1.0 | 100 ~ 180 | 0.4 ~ 2.0 | 0.4 ~ 1.4 | ||
| Cast Iron (HB140-220) | 120 ~ 250 | 0.4 ~ 1.5 | 0.4 ~ 1.5 | 120 ~ 250 | 0.4 ~ 3.0 | 0.4 ~ 2.0 | ||
| High temp. & Titanium alloy | 40 ~ 100 | 0.4 ~ 1.0 | 0.4 ~ 1.0 | 40 ~ 100 | 0.4 ~ 1.6 | 0.4 ~ 1.2 |
CF23E - Milling tools for high feed face milling
Order No.
D L1 L d T Inserts
宑庋佷䩋 Screw Wrench
| ICF23E203032150 | 32 | 28 | 150 | 32 | 3 |
| ICF23E203035180 | 35 | 40 | 180 | 32 | 3 |
WP26339R14 ITS4005 ITK15
| ICF23E203035230 | 35 | 40 | 230 | 32 | 3 |
| ICF23E204040200 | 40 | 40 | 200 | 32 | 4 |
| ICF23E202040200 | 40 | 45 | 200 | 32 | 2 |
WP26379R25 ITS5002 ITK20
ICF23E203050200 50 45 200 32 3
Customize available.
CF23F - Milling tools for high feed face milling
Order No.
D L1 L d T Inserts
宑庋佷䩋 Screw Wrench
| ICF23F203050220 | 50 | 21 | 50 | 22 | 3 |
| ICF23F204063220 | 63 | 21 | 50 | 22 | 4 |
| ICF23F205080270 | 80 | 23 | 50 | 27 | 5 |
WP26379R25 ITS5002 ITK20
| ICF23F206100320 | 100 | 26 | 50 | 32 | 6 |
| ICF23F207125400 | 125 | 38 | 63 | 40 | 7 |
| ICF23F208160400 | 160 | 38 | 63 | 40 | 8 |
