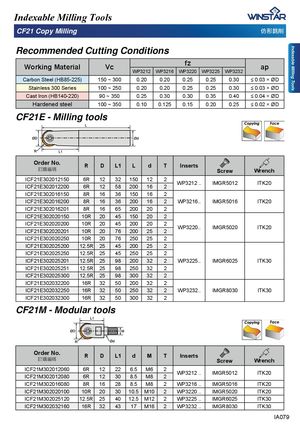

Каталог Winstar инструмент со сменными пластинами 2020 - страница 89

Indexable Milling Tools Indexable Milling Tools CF21 Copy Milling ₎ヱ搠⏙ Recommended Cutting Conditions Working Material Vc fz ap WP3212 WP3216 WP3220 WP3225 WP3232 Carbon Steel (HB85-225) 150 ~ 300 0.20 0.20 0.25 0.25 0.30 ”î‘' Stainless 300 Series 100 ~ 250 0.20 0.20 0.25 0.25 0.30 ”î‘' Cast Iron (HB140-220) 90 ~ 350 0.25 0.30 0.30 0.35 0.40 ”î‘' Hardened steel 100 ~ 350 0.10 0.125 0.15 0.20 0.25 ”î‘' CF21E - Milling tools Order No.宑庋佷䩋 R D L1 L d T Inserts Screw Wrench ICF21E302012150ICF21E3020122006R12 32 150 126R12582001622WP3212 .. IMGR5012 ITK20 ICF21E302016150 8R 16 36 150 16 2 ICF21E302016200 8R 16 36 200 16 2 WP3216.. IMGR5016 ITK20 ICF21E302016201 8R 16 65 200 20 2 ICF21E302020150 10R 20 45 150 20 2 ICF21E302020200ICF21E30202020110R20 45 200 2010R20762002522WP3220.. IMGR5020 ITK20 ICF21E302020250 10R 20 76 250 25 2 ICF21E302025200 12.5R 25 45 200 25 2 ICF21E302025250 12.5R 25 45 250 25 2 ICF21E302025201 12.5R 25 98 200 32 2 WP3225.. IMGR6025 ITK30 ICF21E302025251 12.5R 25 98 250 32 2 ICF21E302025300 12.5R 25 98 300 32 2 ICF21E302032200 16R 32 50 200 32 2 ICF21E302032250 16R 32 50 250 32 2 WP3232.. IMGR8030 ITK30 ICF21E302032300 16R 32 50 300 32 2 CF21M - Modular tools Order No.宑庋佷䩋 R D L1 d M T Inserts Screw Wrench ICF21M302012060ICF21M3020120806R126R1222 6.5 M6308.5M8 22 WP3212 .. IMGR5012 ITK20 ICF21M302016080 8R 16 28 8.5 M8 2 WP3216 .. IMGR5016 ITK20 ICF21M302020100 10R 20 30 10.5 M10 2 WP3220 .. IMGR5020 ITK20 ICF21M302025120 12.5R 25 40 12.5 M12 2 WP3225 .. IMGR6025 ITK30 ICF21M302032160 16R 32 43 17 M16 2 WP3232 .. IMGR8030 ITK30 IA079
