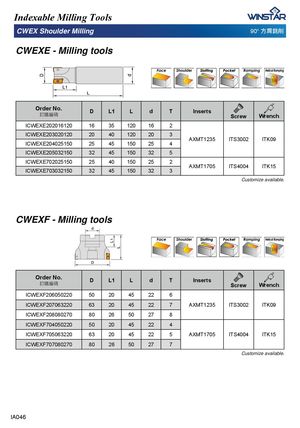

CWEXE - Milling tools
| Order No. ���� | D | L1 | L | d | T | Inserts | Screw | Wrench |
| ICWEXE202016120 | 16 | 35 | 120 | 16 | 2 | |||
| ICWEXE203020120 | 20 | 40 | 120 | 20 | 3 | AXMT123 | ITS3002 | ITK09 |
| ICWEXE204025150 | 25 | 45 | 150 | 25 | 4 | 5 | ||
| ICWEXE205032150 | 32 | 45 | 150 | 32 | 5 | |||
| ICWEXE702025150 | 25 | 40 | 150 | 25 | 2 | |||
| ICWEXE703032150 | 32 | 45 | 150 | 32 | 3 | AXMT1705 | ITS4004 | ITK15 |
Customize available.
CWEXF - Milling tools
| Order No. ���� | D | L1 | L | d | T | Inserts | Screw | Wrench |
| ICWEXF206050220 | 50 | 20 | 45 | 22 | 6 | |||
| ICWEXF207063220 | 63 | 20 | 45 | 22 | 7 | AXMT1235 | ITS3002 | ITK09 |
| ICWEXF208080270 | 80 | 26 | 50 | 27 | 8 | |||
| ICWEXF704050220 | 50 | 20 | 45 | 22 | 4 | |||
| ICWEXF705063220 | 63 | 20 | 45 | 22 | 5 | AXMT1705 | ITS4004 | ITK15 |
| ICWEXF707080270 | 80 | 26 | 50 | 27 | 7 |
Customize available.
