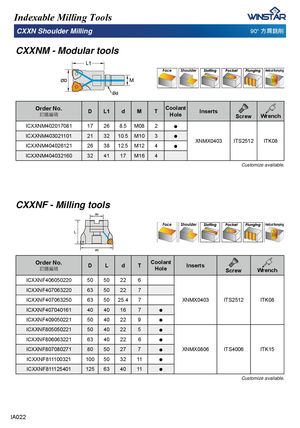

Каталог Winstar инструмент со сменными пластинами 2020 - страница 32
Навигация
Каталог Carbidex сменные пластины 2020
Каталог Winstar твердосплавные пластины и вставки
Каталог Winstar фрезерование
Каталог Winstar монолитный инструмент 2020
Общий каталог Winstar 2015 - 2016
Каталог Winstar сверление
CXXNM - Modular tools
L1
M
| Order No. ���� | D | L1 | d | M | T | Coolant Hole | Inserts | Screw | Wrench |
| ICXXNM402017081 | 17 | 26 | 8.5 | M08 | 2 | � | |||
| ICXXNM403021101 | 21 | 32 | 10.5 | M10 | 3 | � | |||
| ICXXNM404026121 | 26 | 38 | 12.5 | M12 | 4 | � | XNMX0403 | ITS2512 | ITK08 |
| ICXXNM404032160 | 32 | 41 | 17 | M16 | 4 |
Customize available.
CXXNF - Milling tools
| Order No. ���� | D | L | d | T | Coolant Hole | Inserts | Screw | Wrench |
| ICXXNF406050220 | 50 | 50 | 22 | 6 | ||||
| ICXXNF407063220 | 63 | 50 | 22 | 7 | ||||
| ICXXNF407063250 | 63 | 50 | 25.4 | 7 | XNMX0403 | ITS2512 | ITK08 | |
| ICXXNF407040161 | 40 | 40 | 16 | 7 | � | |||
| ICXXNF409050221 | 50 | 40 | 22 | 9 | � | |||
| ICXXNF805050221 | 50 | 40 | 22 | 5 | � | |||
| ICXXNF806063221 | 63 | 40 | 22 | 6 | � | |||
| ICXXNF807080271 | 80 | 50 | 27 | 7 | � | XNMX0806 | ITS4006 | ITK15 |
| ICXXNF811100321 | 100 | 50 | 32 | 11 | � | |||
| ICXXNF811125401 | 125 | 63 | 40 | 11 | � |
Customize available.
