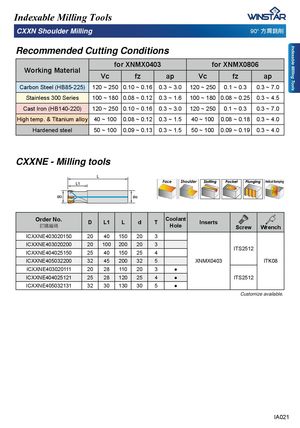

Recommended Cutting Conditions
| Workin Material | fo | r XNMX040 | 3 | fo | r XNMX08 | 06 |
| g | Vc | fz | ap | Vc | fz | ap |
| Carbon Steel (HB85-225) | 120 ~ 250 | 0.10 ~ 0.16 | 0.3 ~ 3.0 | 120 ~ 250 | 0.1 ~ 0.3 | 0.3 ~ 7.0 |
| Stainless 300 Series | 100 ~ 180 | 0.08 ~ 0.12 | 0.3 ~ 1.6 | 100 ~ 180 | 0.08 ~ 0.25 | 0.3 ~ 4.5 |
| Cast Iron (HB140-220) | 120 ~ 250 | 0.10 ~ 0.16 | 0.3 ~ 3.0 | 120 ~ 250 | 0.1 ~ 0.3 | 0.3 ~ 7.0 |
| High temp. & Titanium alloy | 40 ~ 100 | 0.08 ~ 0.12 | 0.3 ~ 1.5 | 40 ~ 100 | 0.08 ~ 0.18 | 0.3 ~ 4.0 |
| Hardened steel | 50 ~ 100 | 0.09 ~ 0.13 | 0.3 ~ 1.5 | 50 ~ 100 | 0.09 ~ 0.19 | 0.3 ~ 4.0 |
CXXNE - Milling tools
| Order No. ���� | D | L1 | L | d | T | Coolant Hole | Inserts | Screw | Wrench |
| ICXXNE403020150 | 20 | 40 | 150 | 20 | 3 | ||||
| ICXXNE403020200 | 20 | 100 | 200 | 20 | 3 | ||||
| ICXXNE404025150 | 25 | 40 | 150 | 25 | 4 | ITS2512 | |||
| ICXXNE405032200 | 32 | 45 | 200 | 32 | 5 | XNMX0403 | ITK08 | ||
| ICXXNE403020111 | 20 | 28 | 110 | 20 | 3 | � | |||
| ICXXNE404025121 | 25 | 28 | 120 | 25 | 4 | � | ITS2512 | ||
| ICXXNE405032131 | 32 | 30 | 130 | 30 | 5 | � |
Customize available.
