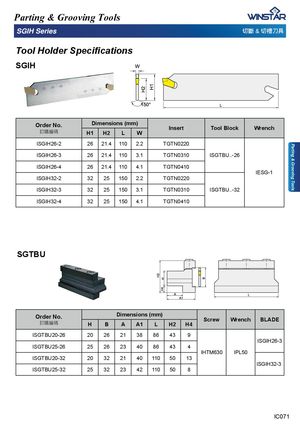

Parting & Grooving Tools Parting & Grooving Tools SGIH Series ⎖㝆 & ⎖㮌⎏⌆ 7RRO+ROGHU6SHFL¿FDWLRQV SGIH Order No. Dimensions (mm)宑庋佷䩋H1H2LW Insert Tool Block Wrench ISGIH26-2 26 21.4 110 2.2 TGTN0220 ISGIH26-3 26 21.4 110 3.1 TGTN0310 ISGTBU..-26 ISGIH26-4 26 21.4 110 4.1 TGTN0410 IESG-1 ISGIH32-2 32 25 150 2.2 TGTN0220 ISGIH32-3 32 25 150 3.1 TGTN0310 ISGTBU..-32 ISGIH32-4 32 25 150 4.1 TGTN0410 SGTBU Order No.宑庋佷䩋 Dimensions (mm) Screw Wrench BLADEHBAA1LH2H4 ISGTBU20-26 20 26 21 38 86 43 9 ISGIH26-3 ISGTBU25-26 25 26 23 40 86 43 4 IHTM630 IPL50 ISGTBU20-32 20 32 21 40 110 50 13 ISGIH32-3 ISGTBU25-32 25 32 23 42 110 50 8 IC071
