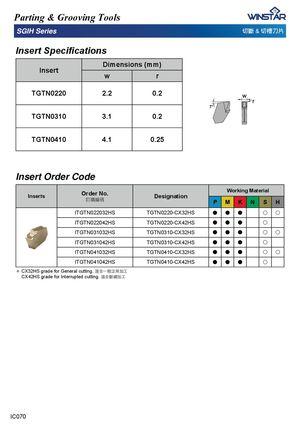

Parting & Grooving Tools SGIH Series ⎖㝆 & ⎖㮌⎏䏖 ,QVHUW6SHFL¿FDWLRQV Dimensions (mm) Insert w r TGTN0220 2.2 0.2 TGTN0310 3.1 0.2 TGTN0410 4.1 0.25 Insert Order Code Inserts Order No.宑庋佷䩋 Working MaterialDesignationPMKNSH ITGTN022032HS TGTN0220-CX32HS β β β ΰ ΰ ITGTN022042HS TGTN0220-CX42HS β β β ΰ ITGTN031032HS TGTN0310-CX32HS β β β ΰ ΰ ITGTN031042HS TGTN0310-CX42HS β β β ΰ ITGTN041032HS TGTN0410-CX32HS β β β ΰ ΰ ITGTN041042HS TGTN0410-CX42HS β β β ΰ ＊ CX32HS grade for General cutting. 懸▗ᾏ去㹪䚷␯⽴ 　 CX42HS grade for Interrupted cutting. 懸▗㝆倛␯⽴ IC070
