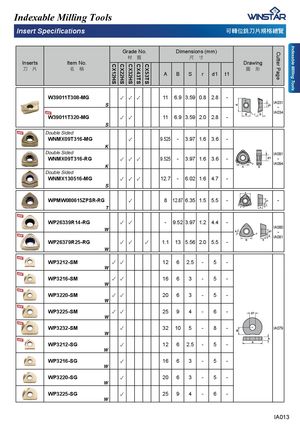

| Inserts ���� | Item No. ���� | CX | G CX | rad ��� CX | e N ��� CX | o. CX | Dim | ensio ��� | ns (m ��� | m) | Drawing ���� | Cutter P | ||
| �� | �� | 12HS | 22HS | 32HS | 43TS | 53TS | A | B | S | r | d1 | t1 | �� | age |
| W39011T308-MG S | ✓ | ✓ | ✓ | 11 | 6.9 | 3.59 | 0.8 | 2.8 | - | IA031 ~ | ||||
| W39011T320-MG S | ✓ | ✓ | 11 | 6.9 | 3.59 | 2.0 | 2.8 | - | IA034 | |||||
| WNMX09T316-MG Double Sided K | ✓ | 9.525 | - | 3.97 | 1.6 | 3.6 | - | |||||||
| WNMX09T316-RG Double Sided K | ✓ | ✓ | ✓ | 9.525 | - | 3.97 | 1.6 | 3.6 | - | IA091 ~ IA094 | ||||
| WNMX130516-MG Double Sided S | ✓ | ✓ | ✓ | 12.7 | - | 6.02 | 1.6 | 4.7 | - | |||||
| WPMW080615ZPSR-RG T | ✓ | 8 | 12.87 | 6.35 | 1.5 | 5.5 | - | - | ||||||
| WP26339R14-RG W | ✓ | ✓ | - | 9.52 | 3.97 | 1.2 | 4.4 | - | IA080 ~ | |||||
| WP26379R25-RG W | ✓ | ✓ | ✓ | 1.1 | 13 | 5.56 | 2.0 | 5.5 | - | IA081 | ||||
| WP3212-SM W | ✓ | ✓ | 12 | 6 | 2.5 | - | 5 | - | ||||||
| WP3216-SM W | ✓ | ✓ | 16 | 6 | 3 | - | 5 | - | ||||||
| WP3220-SM W | ✓ | ✓ | 20 | 6 | 3 | - | 5 | - | ||||||
| WP3225-SM W | ✓ | ✓ | 25 | 9 | 4 | - | 6 | - | ||||||
| WP3232-SM W | ✓ | 32 | 10 | 5 | - | 8 | - | IA079 | ||||||
| WP3212-SG W | ✓ | 12 | 6 | 2.5 | - | 5 | - | |||||||
| WP3216-SG W | ✓ | 16 | 6 | 3 | - | 5 | - | |||||||
| WP3220-SG W | ✓ | 20 | 6 | 3 | - | 5 | - | |||||||
| WP3225-SG W | ✓ | 25 | 9 | 4 | - | 6 | - |
