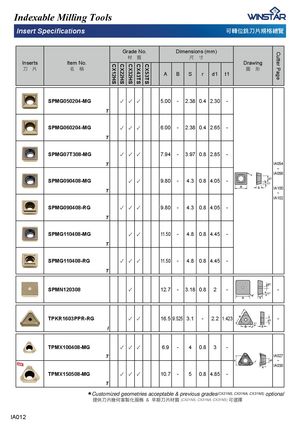

| Inserts ���� | Item No. ���� | CX | Gr CX | ad ��� CX | e No. ��� CX | CX | Dim | ensio ��� | ns ( ��� | mm) | Draw ��� | ing ��� | Cutter P | ||
| �� | �� | 12HS | 22HS | 32HS | 43TS | 53TS | A | B | S | r | d1 | t1 | �� | �� | age |
| SPMG050204-MG T | ✓ | ✓ | ✓ | 5.00 | - | 2.38 | 0.4 | 2.30 | - | ||||||
| SPMG060204-MG T | ✓ | ✓ | ✓ | 6.00 | - | 2.38 | 0.4 | 2.65 | - | ||||||
| SPMG07T308-MG T | ✓ | ✓ | ✓ | 7.94 | - | 3.97 | 0.8 | 2.85 | - | IA054 ~ | |||||
| SPMG090408-MG T | ✓ | ✓ | 9.80 | - | 4.3 | 0.8 | 4.05 | - | 11° | IA056 IA100 ~ | |||||
| SPMG090408-RG T | ✓ | ✓ | ✓ | 9.80 | - | 4.3 | 0.8 | 4.05 | - | IA102 | |||||
| SPMG110408-MG T | ✓ | ✓ | 11.50 | - | 4.8 | 0.8 | 4.45 | - | |||||||
| SPMG110408-RG T | ✓ | ✓ | ✓ | 11.50 | - | 4.8 | 0.8 | 4.45 | - | ||||||
| SPMN120308 | ✓ | 12.7 | - | 3.18 | 0.8 | 2 | - | - | |||||||
| TPKR1603PPR-RG I | ✓ | ✓ | 16.5 | 9.525 | 3.1 | - | 2.2 | 1.423 | t1 | - | |||||
| TPMX100408-MG T | ✓ | ✓ | ✓ | 6.9 | - | 4 | 0.8 | 3 | - | IA027 | |||||
| TPMX150508-MG T | ✓ | ✓ | ✓ | 10.7 | - | 5 | 0.8 | 4.85 | - | ~ IA030 |
