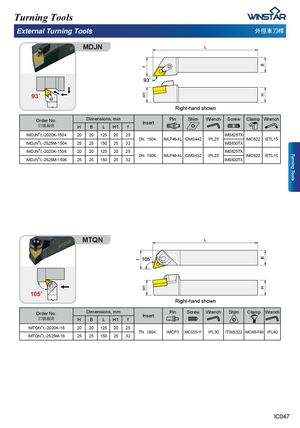

Каталог Winstar инструмент со сменными пластинами 2020 - страница 215

Turning Tools Turning Tools External Turning Tools ⪥ㄠ恙⎏㨎 MDJN Order No.宑庋佷䩋 Dimensions, mm Insert Pin Shim Wrench Screw Clamp WrenchHBLH1f IMDJNR/L-2020K-1504 20 20 125 20 25 IMS625TXDN..1504..IMLP46-ALIDMS442IPL25IMC622IETL15 IMDJNR/L-2525M-1504 25 25 150 25 32 IMS630TX IMDJNR/L-2020K-1506 20 20 125 20 25 IMS625TXDN..1506..IMLP46-ALIDMS432IPL25IMC622IETL15 IMDJNR/L-2525M-1506 25 25 150 25 32 IMS630TX MTQN Order No.宑庋佷䩋 Dimensions, mm Insert Pin Screw Wrench Shim Clamp WrenchHBLH1f IMTQNR/L-2020K-16 20 20 125 20 25 TN..1604.. IMCP3 IMCS3S-11 IPL30 ITWS322 IMCW3-P40 IPL40 IMTQNR/L-2525M-16 25 25 150 25 32 IC047
